7 20 Pts Design A State Machine To Implement Cheggcom
Solved 7. (20 pts) Design a state machine to implement the | Chegg.com
7. ( 20 pts ) Design a state machine to implement | Chegg.com
Solved (20 pts) Design a state machine to implement the | Chegg.com
Solved Design a state machine circuit to implement the state | Chegg.com
Design a state machine to implement the state diagram below. Include all
Solved Section 7 (10 points) Design a state machine to | Chegg.com
Solved (20 pts) Design a state machine to implement the | Chegg.com
Solved (20 pts) Design a state machine to implement the | Chegg.com
Solved Create a component to implement the state machine | Chegg.com
Solved Exercise 6.3.We want to design a state machine with | Chegg.com
Advertisement Space (300x250)
Solved 27-1: We want to design a state machine that follows | Chegg.com
Solved In this lab, you are going design a state machine to | Chegg.com
Solved Suppose we want to design a state machine that | Chegg.com
Solved omplete a state machine design that would give the | Chegg.com
Solved PART 1 - Design a state machine solution for the | Chegg.com
Problem 1. State Machine Design (20 points) Design a | Chegg.com

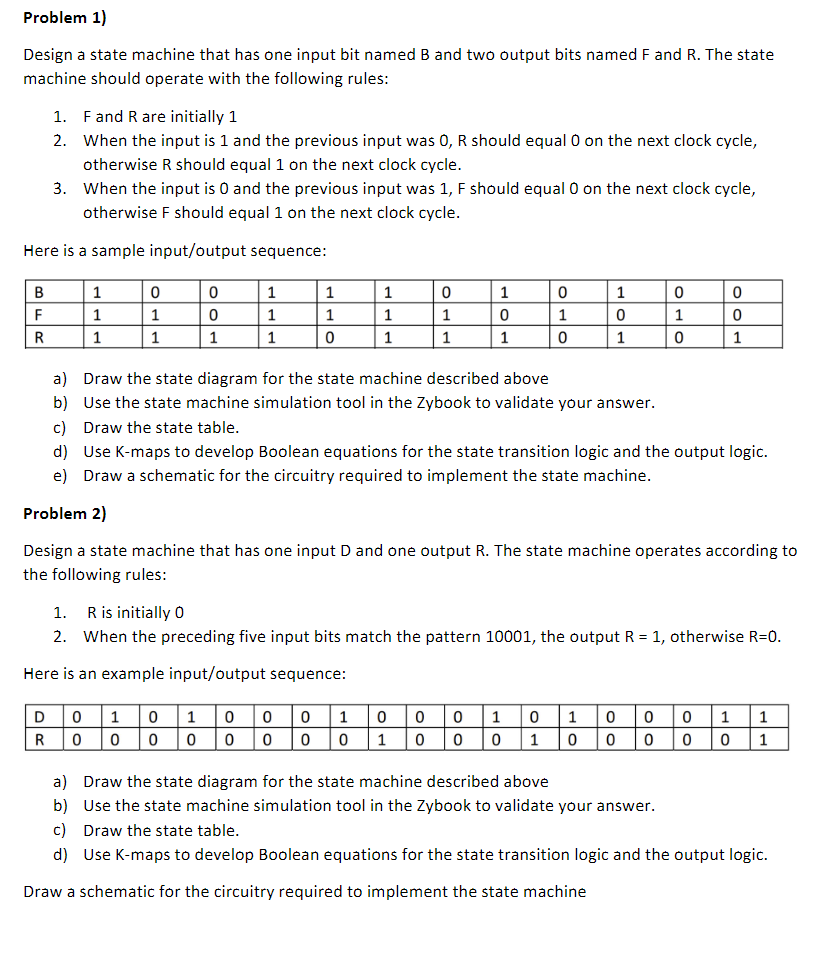

Problem 1) Design a state machine that has one input | Chegg.com
(3) Design a state machine that operates from its | Chegg.com

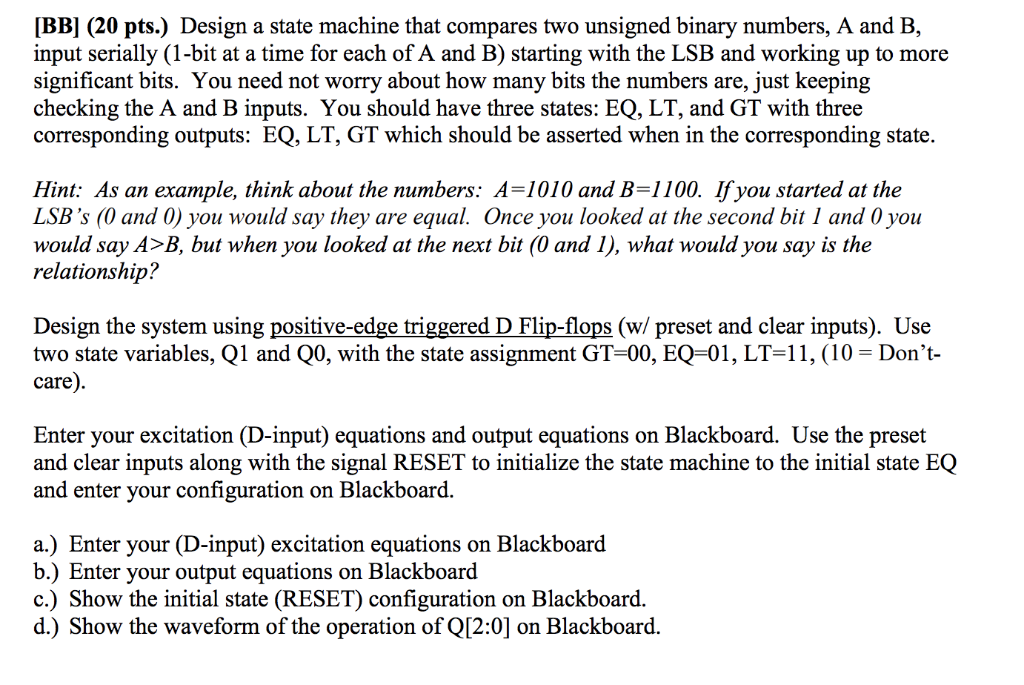

![BB] (20 pts.) Design a state machine that compares | Chegg.com](https://media.cheggcdn.com/media/1eb/1eb33d54-8bb3-40be-a18f-5e77e3b62940/phpups2w7.png)
BB] (20 pts.) Design a state machine that compares | Chegg.com
State Machine Design In a previous exercise, you were | Chegg.com
Advertisement Space (336x280)
Solved Suppose you are to implement the state machine with | Chegg.com

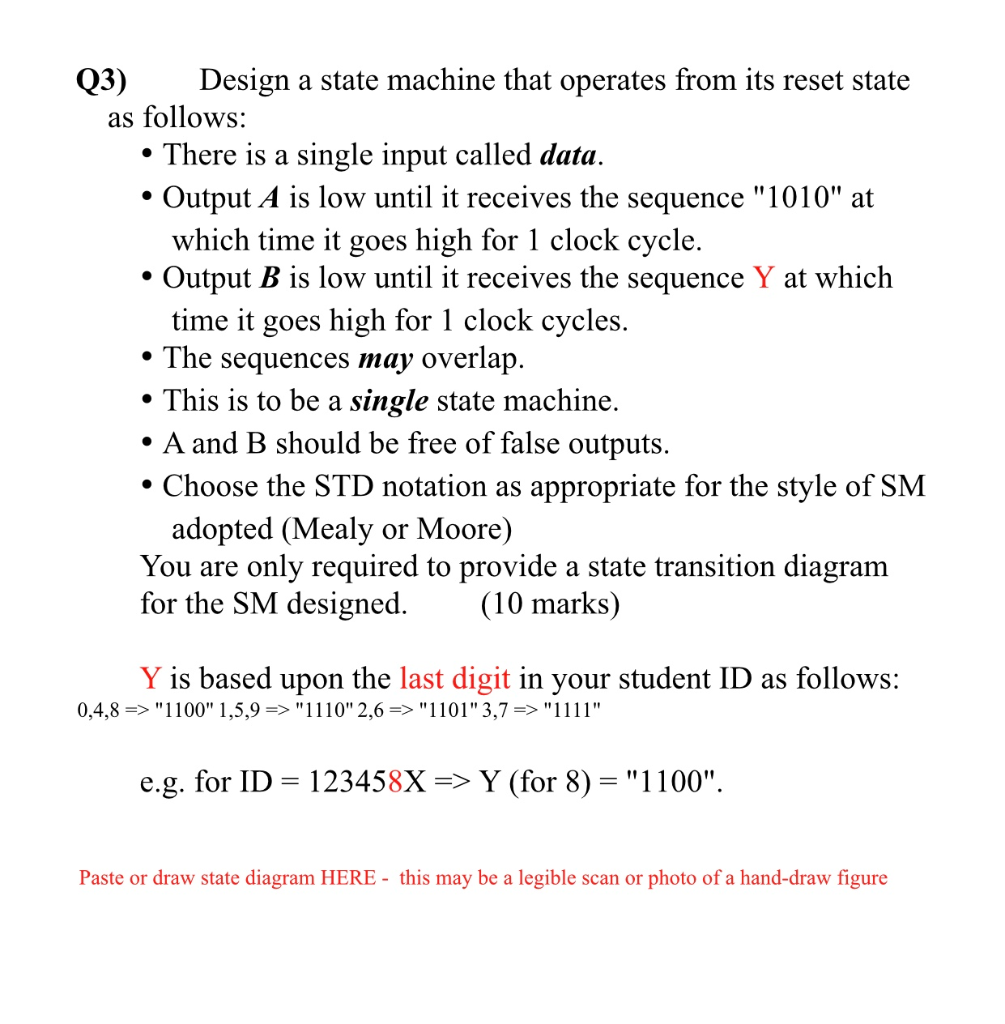

Solved Q3) Design a state machine that operates from its | Chegg.com
Solved Design problem Design a state machine that has one | Chegg.com
Solved • Design a state machine that takes a series of 1's | Chegg.com
Solved 27-12: Suppose you are to implement the state machine | Chegg.com

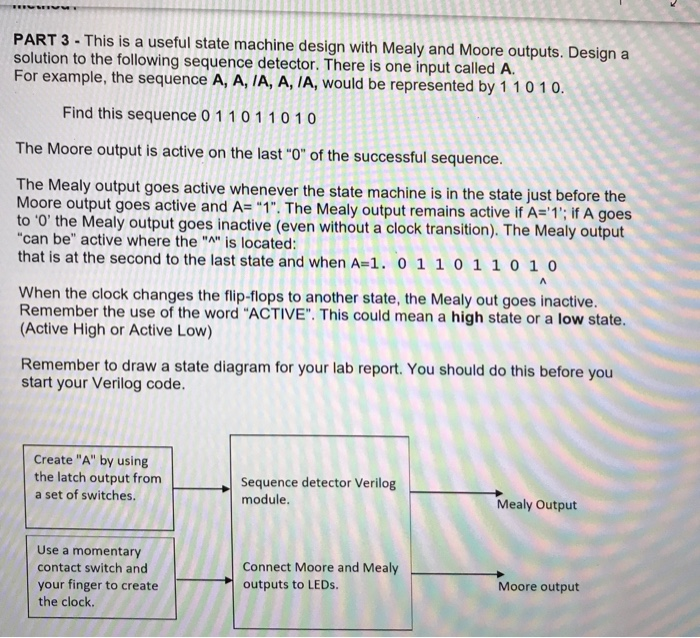

PART 3 - This is a useful state machine design with | Chegg.com
Solved Design a state machine that can detect the sequence | Chegg.com
Solved Design of state machine Design a counter that counts | Chegg.com

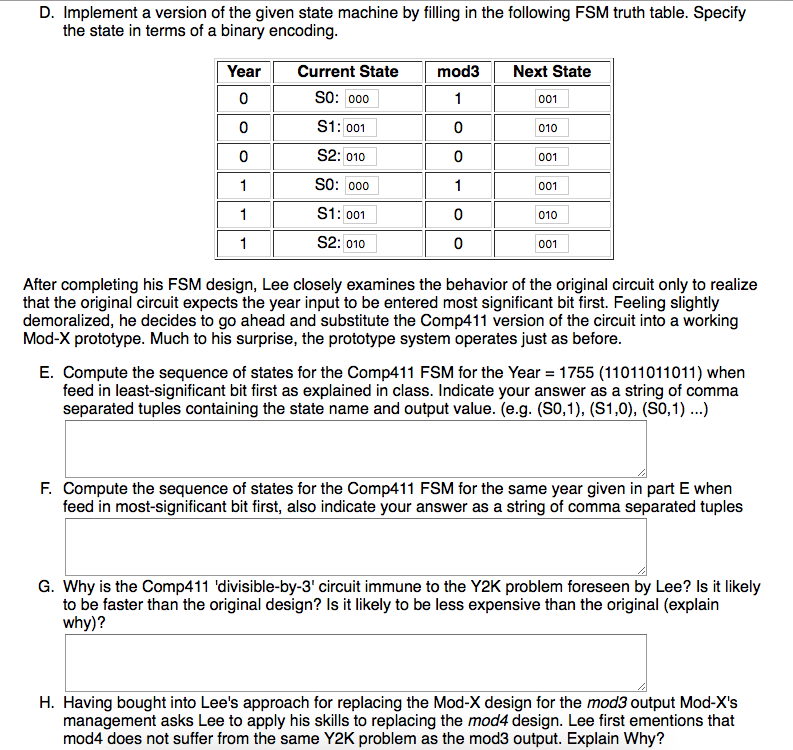

D. Implement a version of the given state machine by | Chegg.com
Solved 27-12: Suppose you are to implement the state machine | Chegg.com
Advertisement Space (336x280)
Solved 2. State Machine Design (30pt.) Draw a state diagram | Chegg.com

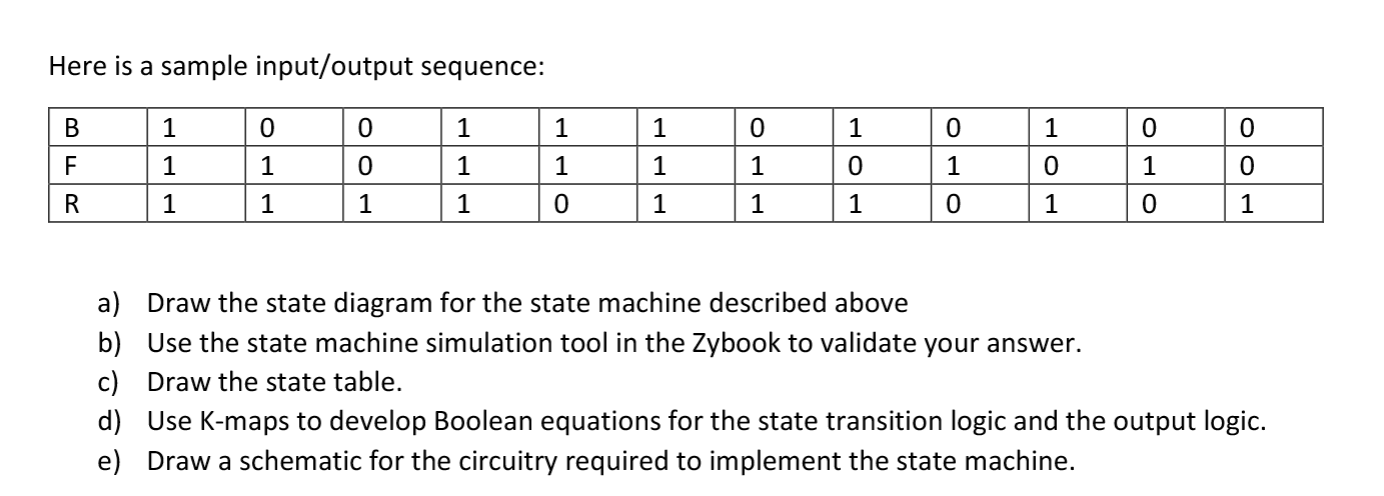

Solved Problem 3) Design a state machine that has one input | Chegg.com
Solved Design problem Design a state machine that has one | Chegg.com
SOLVED: Take this state graph and draw a state machine chart to ...
Solved Implement the state machine shown below using | Chegg.com
Solved 2. Implementing the following state machine using a | Chegg.com
