Solved 3 Figure Below Shows The Block Diagram Of A Servo Cheggcom
Solved 3. Figure below shows the block diagram of a servo | Chegg.com
Solved 3. Figure below shows the block diagram of a servo | Chegg.com
Solved 3 (a) Figure Q3 below shows the block diagram of a | Chegg.com
Solved Question 4 Figure below shows the block diagram of a | Chegg.com
Solved (b) Figure 1.2 shows the block diagram of a servo | Chegg.com

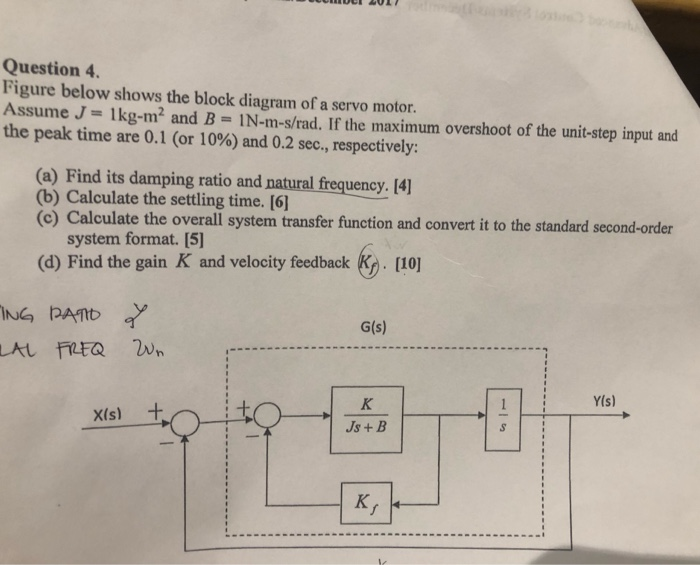

Solved Question 4. Figure below shows the block diagram of a | Chegg.com
Solved (c) Figure 3 shows the block diagram of a DC servo | Chegg.com
Solved QUESTION 2 Figure 2 shows the block diagram of a | Chegg.com

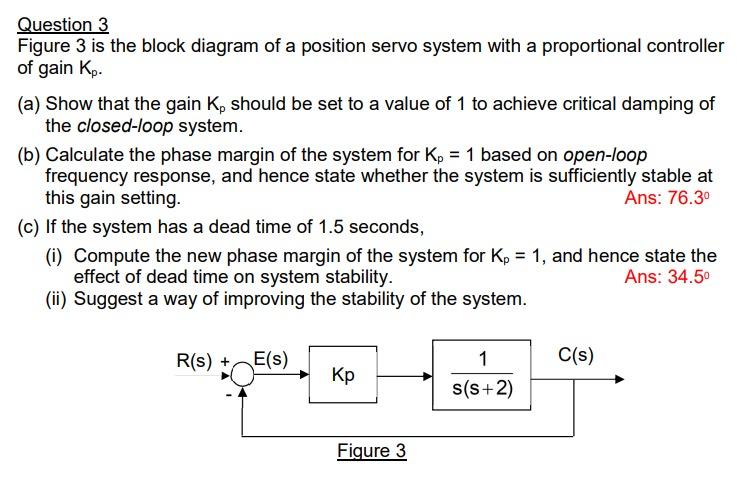

Solved Question 3 Figure 3 is the block diagram of a | Chegg.com
Solved Question 3 The block diagram of a simple servo system | Chegg.com
Advertisement Space (300x250)

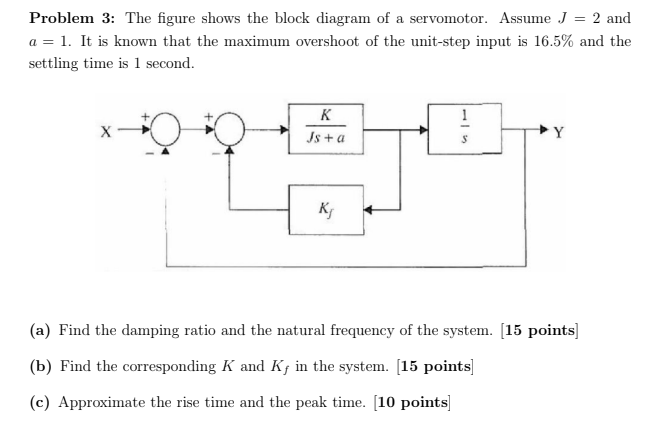

Solved Problem 3: The figure shows the block diagram of a | Chegg.com
Solved Q3: Fig below shows the block diagram of a | Chegg.com
Solved The figure shows the block diagram of a servomotor. | Chegg.com
Solved Block diagram of a servo system with the controller | Chegg.com
Solved The block diagram of a servo system is shown in | Chegg.com
Solved The block diagram of the servo control of a mechanism | Chegg.com
Solved The block diagram of a servo system is shown in fig. | Chegg.com
SOLVED: Problem 1. Consider the block diagram of Figure 1 of a servo ...
Solved The block diagram of the servo control of a mechanism | Chegg.com
Solved 2. The block diagram below is for a servo motor | Chegg.com
Advertisement Space (336x280)
Solved The block diagram of a simplified servo is shown in | Chegg.com

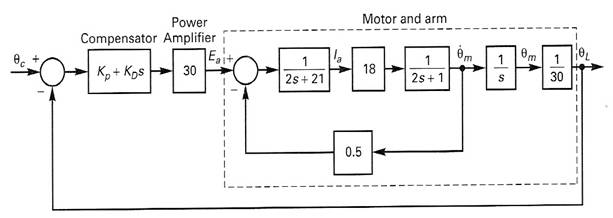

Solved Shown in the figure below is the block diagram of | Chegg.com
(Solved) - A Block Diagram Of A Servo System Is Given In Figure Below ...
Solved Consider the servo block diagram of Fig. 4.14 below | Chegg.com
Solved Consider the block diagram in the figure below a | Chegg.com

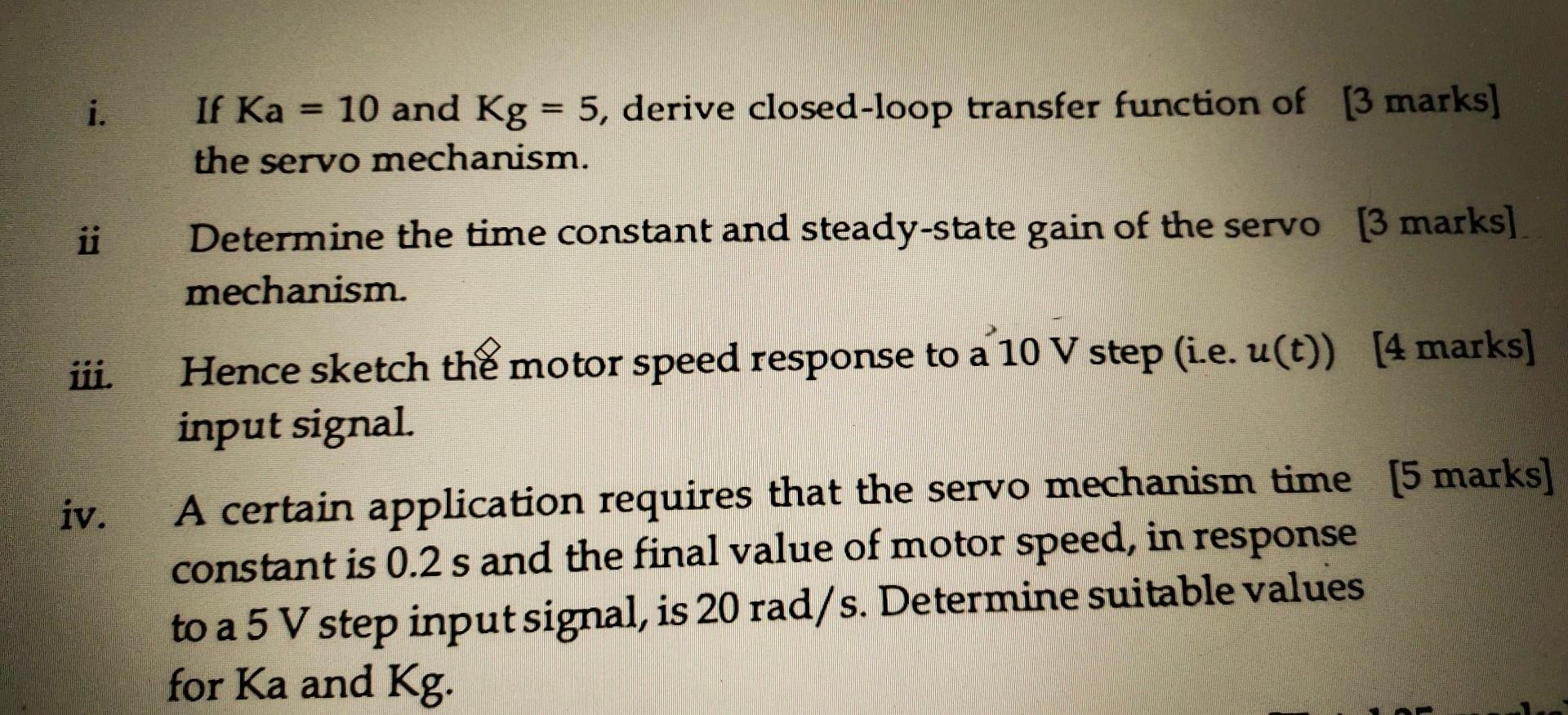

Solved Figure Q1.b shows the block diagram of velocity | Chegg.com
Solved The block diagram of a position control servo system | Chegg.com
The block diagram for position control of a servo motor is shown below ...

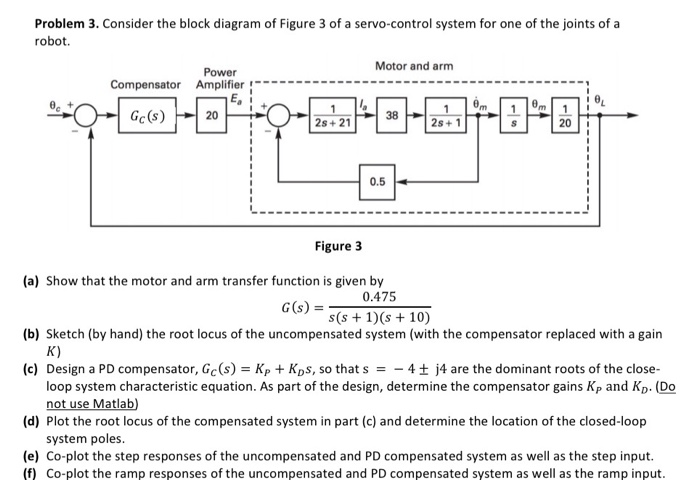

Problem 3. Consider the block diagram of Figure 3 of | Chegg.com

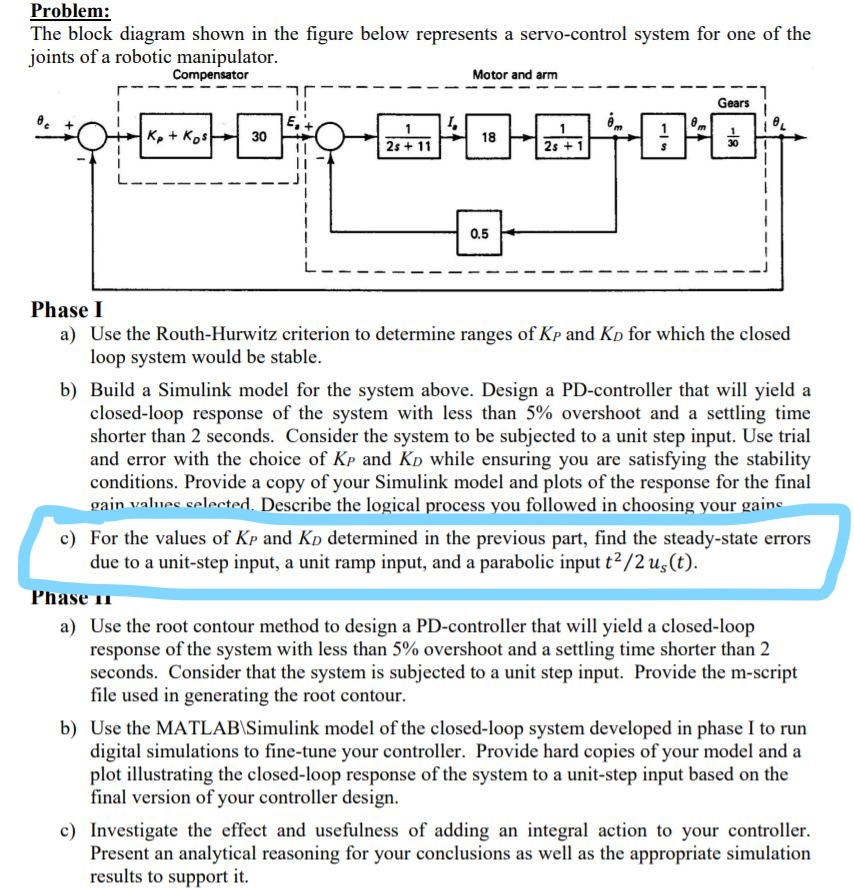

Solved Problem: The block diagram shown in the figure below | Chegg.com
Advertisement Space (336x280)
Solved Block diagram of a servo control system is given | Chegg.com

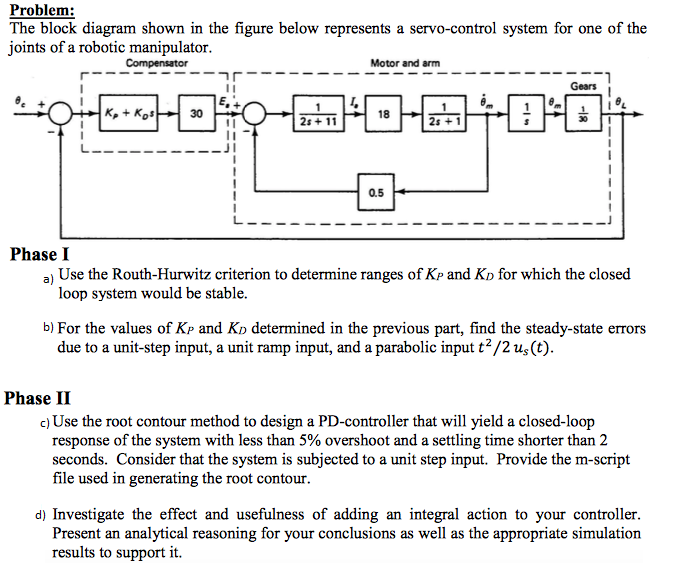

Solved Problem: The block diagram shown in the figure below | Chegg.com
Solved Problem The block diagram shown in the figure below | Chegg.com
Solved Question 5 (15pts) Block diagram of a servo control | Chegg.com
Solved Problem 5: (20 points) Figure 3 is the block diagram | Chegg.com
Solved Draw the block diagram of the servo system shown in | Chegg.com
