Solved Figure below is showing a simple single-bit ALU | Chegg.com
Solved Figure below is showing a simple single-bit ALU | Chegg.com
Solved Figure below is showing a simple single-bit ALU | Chegg.com
Solved 3. A figure of a simple 1 bit ALU with multiplexer BO | Chegg.com

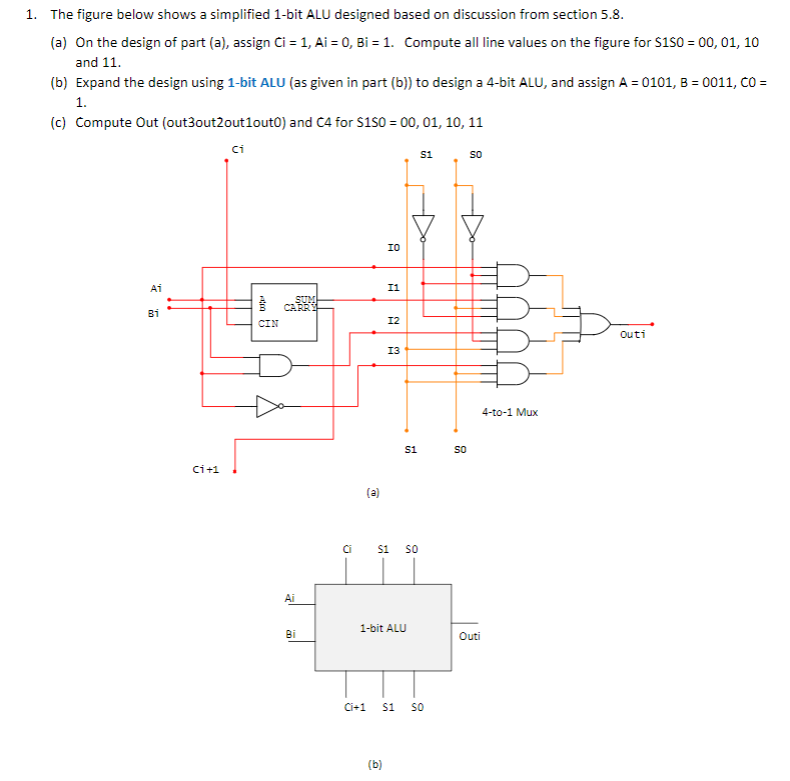

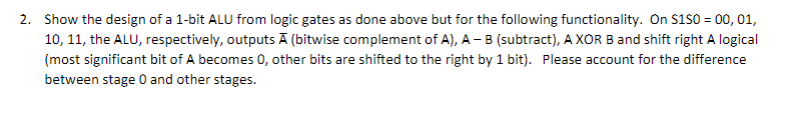

Solved 1. The figure below shows a simplified 1-bit ALU | Chegg.com
Solved 2. Draw a logic diagram of a single bit ALU with | Chegg.com
Solved 3. (ALU) Design a 4-data bit ALU. Below is a block | Chegg.com
Solved The following is a circuit diagram for a single bit | Chegg.com
Solved 3. (ALU) Design a 3-data bit ALU. Below is a block | Chegg.com

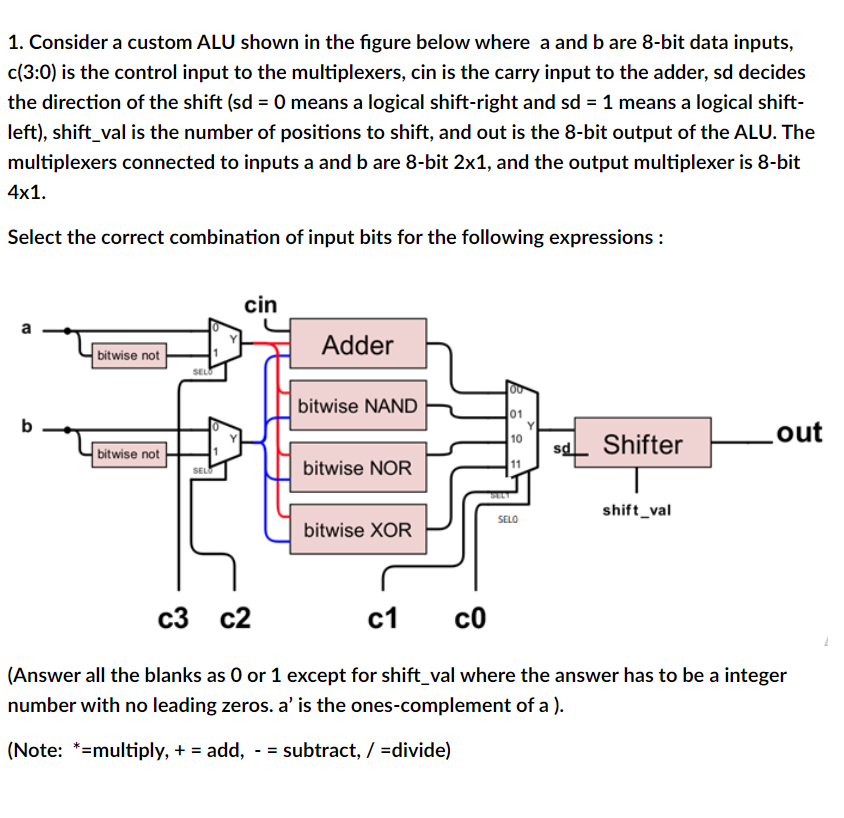

Solved Consider a custom ALU shown in the figure below where | Chegg.com
Advertisement Space (300x250)
Solved 4. Figure 1 illustrates a simple ALU that takes two | Chegg.com
Solved Question 47 2 pts Figure below shows a simple 32-bit | Chegg.com
Solved Q6 Reduce the figure below Figure Q6.1 to a single | Chegg.com
Solved 1. Consider a custom ALU shown in the figure below | Chegg.com
Solved Below is a circuit diagram of the 1-bit ALU that we | Chegg.com
Solved 1. The figure below shows a simplified 1-bit ALU | Chegg.com
Solved The following is a circuit diagram for a single bit | Chegg.com
Solved Below is a 1-bit ALU diagram. Op is a 3-bit input | Chegg.com
Solved Figure Q3 shows a block diagram of a simple 1-bit | Chegg.com
Solved (ALU) Design a 1-bit ALU. Below is a block diagram of | Chegg.com
Advertisement Space (336x280)
Solved 1. You are given a 1 bit ALU as an example (Figure | Chegg.com

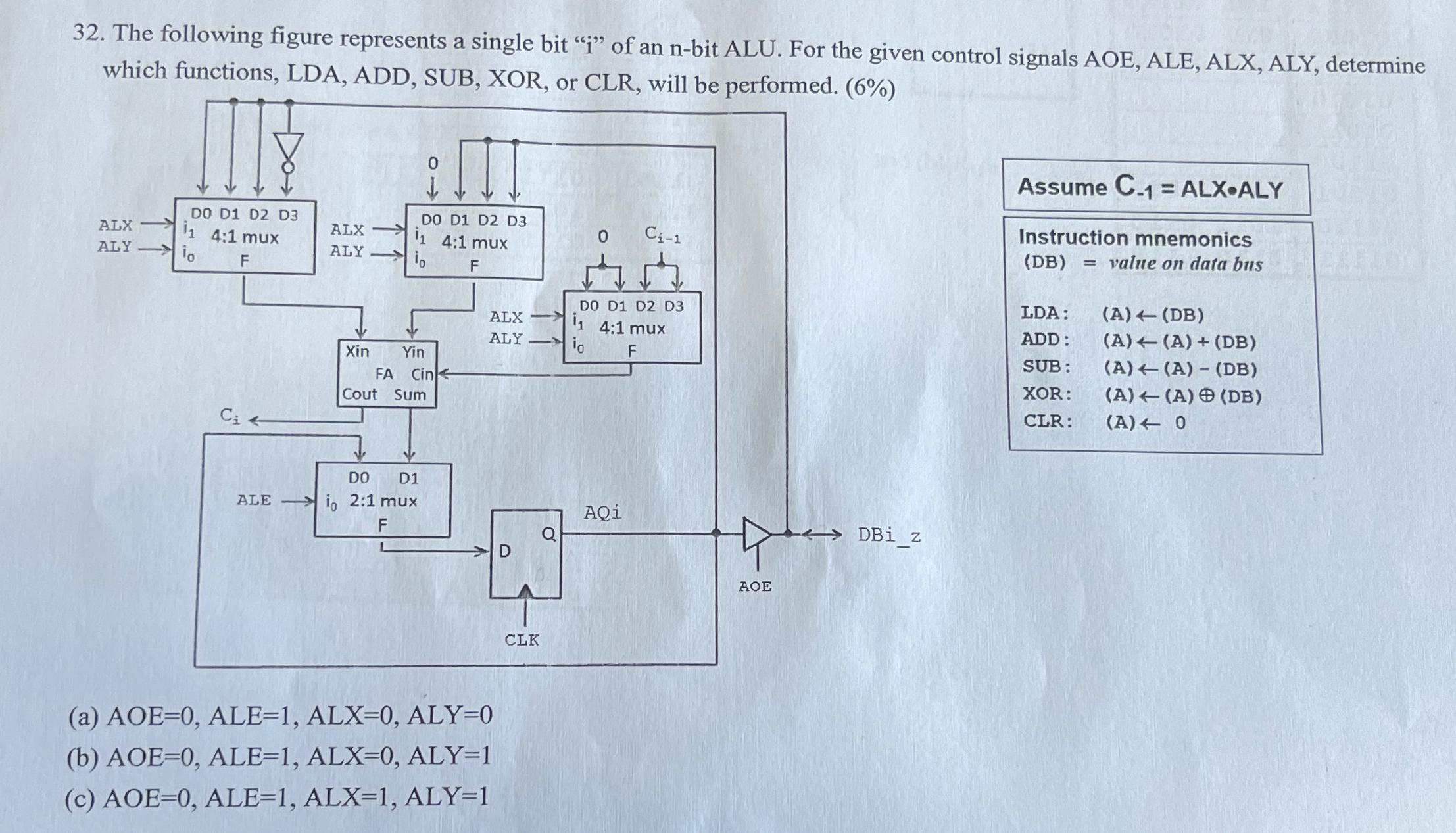

The following figure represents a single bit "i" of | Chegg.com
Solved In the class we designed a simple ALU supporting 4 | Chegg.com

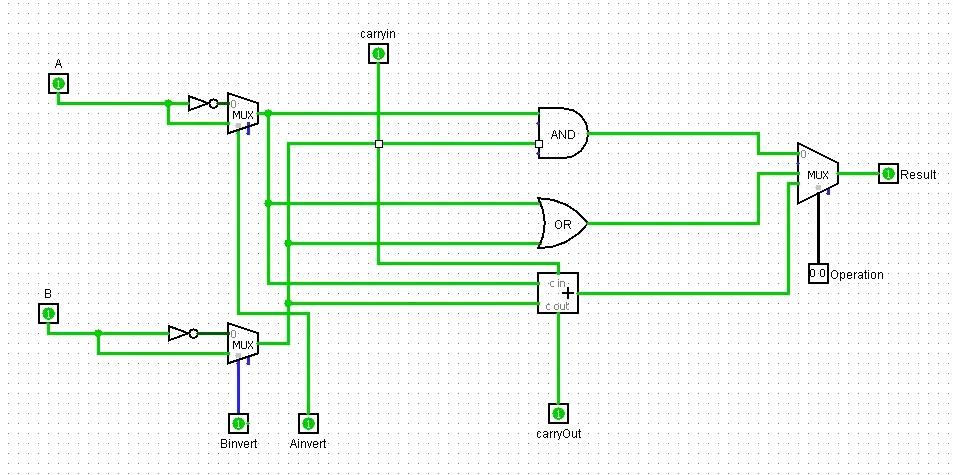

Solved Given 1 bit of ALU in the figure Explain one by one | Chegg.com
Solved 23. Consider the ALU bit slice below (from the | Chegg.com
Solved Consider the ALU bit slice shown below (note that for | Chegg.com
Solved Design a bit slice of the ALU shown below. The ALU | Chegg.com
Solved Consider the ALU bit slice shown below - the same as | Chegg.com
Solved Design and draw a simple single-bit ALU, which is | Chegg.com

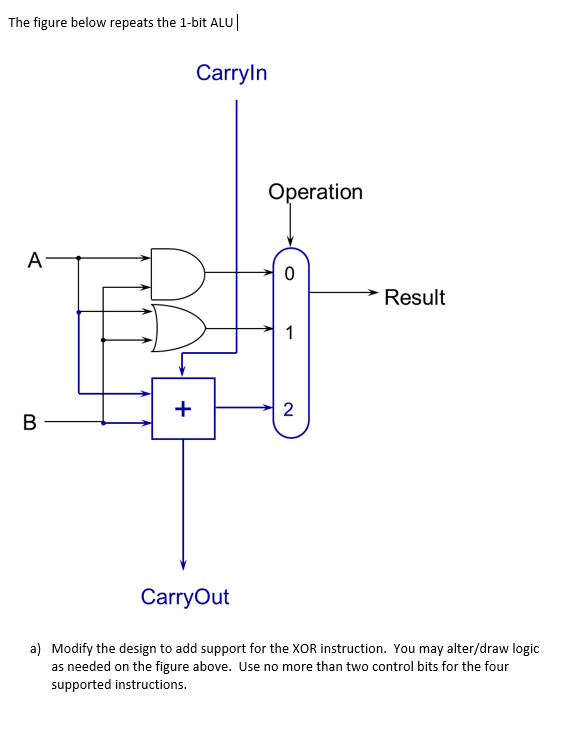

Solved The figure below repeats the 1-bit ALU Carryln | Chegg.com
Advertisement Space (336x280)

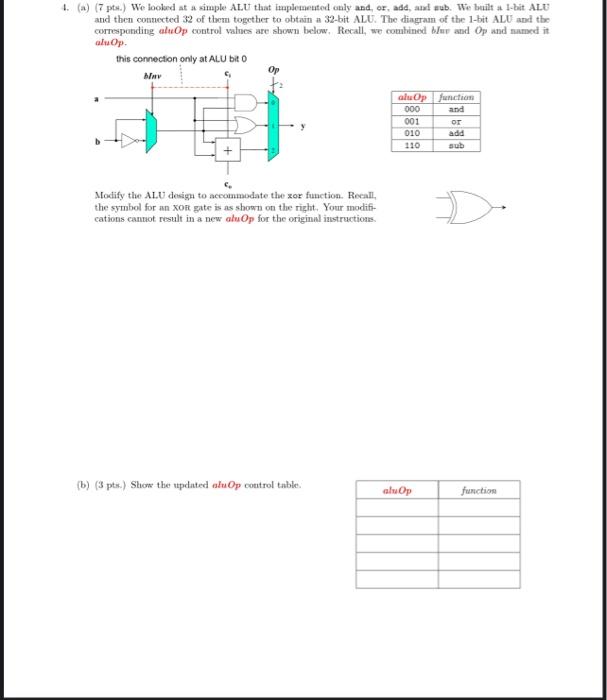

Solved 1. (a) (7 p.) We looked at a simple ALU that | Chegg.com

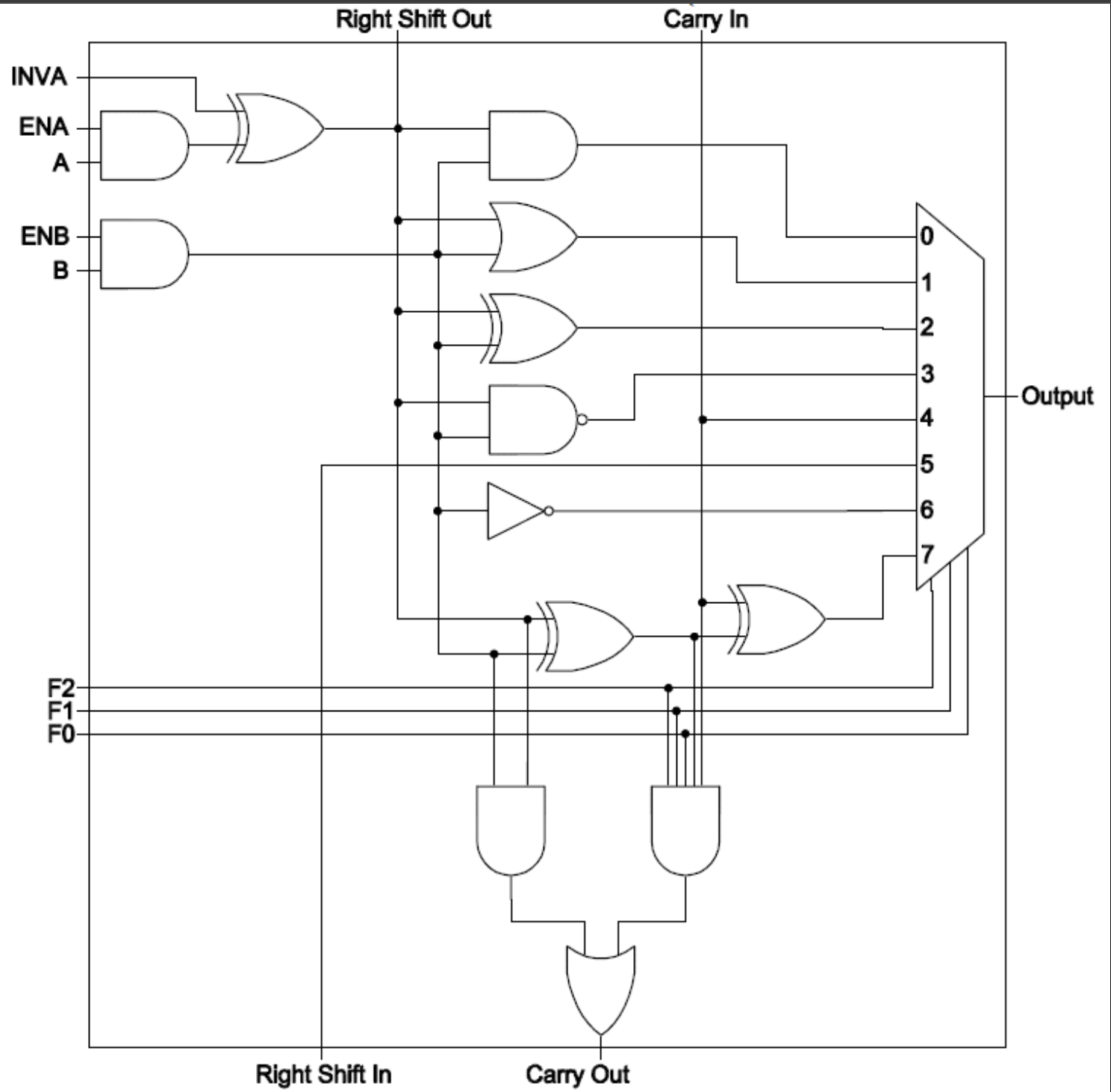

Solved Consider the ALU bit slice below (not the same as | Chegg.com
Solved Design a bit slice of the ALU shown below. The ALU | Chegg.com
Solved 6. (5 Points) Design a 1-bit ALU. Below is a block | Chegg.com
Solved Design a bit slice of the ALU shown below. The ALU | Chegg.com
Solved 1. Design a 1-bit ALU. Below is a block diagram of a | Chegg.com
