Solved For The Self Bias N Channel Jfet Circuit Shown Below Cheggcom

Solved For the self bias N-channel JFET circuit shown below, | Chegg.com
Solved For the self bias N-channel JFET circuit shown below, | Chegg.com
Solved 1. For the Self Bias JFET Amplifier Circuit Shown | Chegg.com
Solved 1. For the Self Bias JFET Amplifier Circuit Shown | Chegg.com
Solved 1. For the Self Bias JFET Amplifier Circuit Shown | Chegg.com
Solved 1. For the Self Bias JFET Amplifier Circuit Shown | Chegg.com
Solved 1. For the Self Bias JFET Amplifier Circuit Shown | Chegg.com
Solved 1. For the Self Bias JFET Amplifier Circuit Shown | Chegg.com

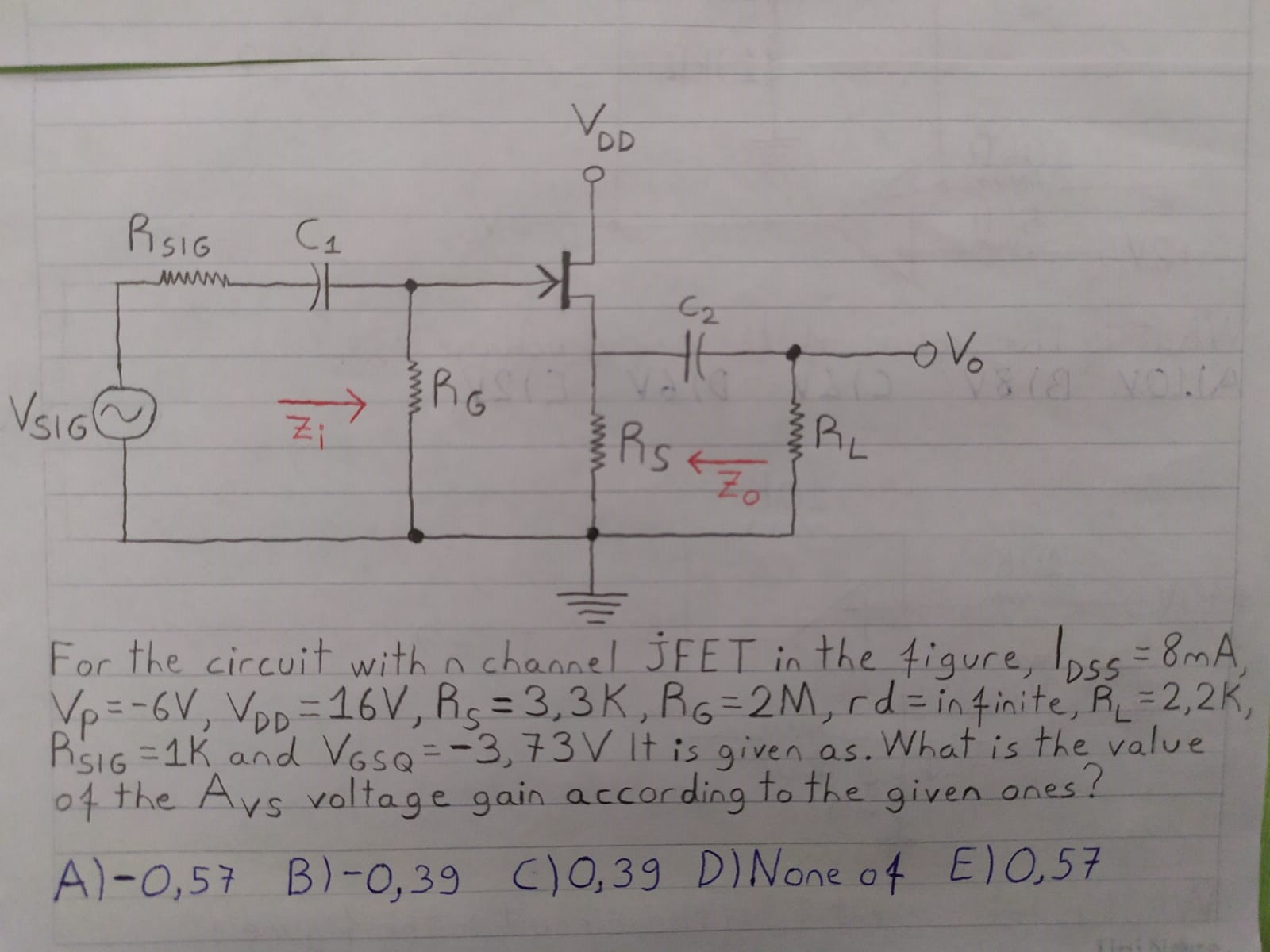

Solved For the circuit with n channel JFET in the figure, | Chegg.com
Solved For the circuit with n channel JFET in the figure, | Chegg.com

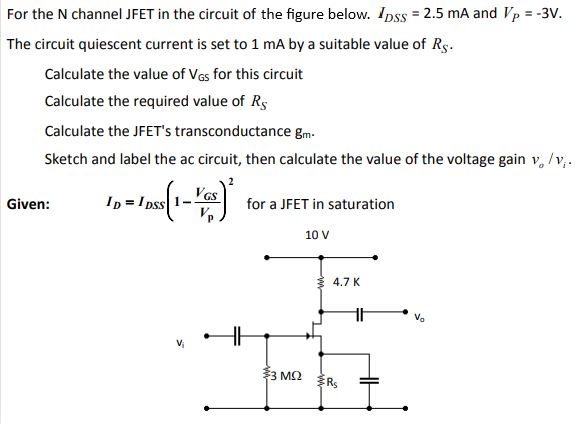

Solved For the N channel JFET in the circuit of the figure | Chegg.com
Solved For the N channel JFET in the circuit of the figure | Chegg.com
Solved For the circuit with n channel JFET in the figure, | Chegg.com
Solved For the circuit with n channel JFET in the figure, | Chegg.com
Solved learly .For the Self Bias JFET Amplifier circuit | Chegg.com
Solved learly .For the Self Bias JFET Amplifier circuit | Chegg.com
Solved For the following JFET self biasing circuit and its | Chegg.com
Solved For the following JFET self biasing circuit and its | Chegg.com
Solved 5) For the JFET self-bias circuit shown below, DSS 8 | Chegg.com
Solved 5) For the JFET self-bias circuit shown below, DSS 8 | Chegg.com
Solved 20. For the n-channel JFET amplifier circuit shown in | Chegg.com
Solved 20. For the n-channel JFET amplifier circuit shown in | Chegg.com

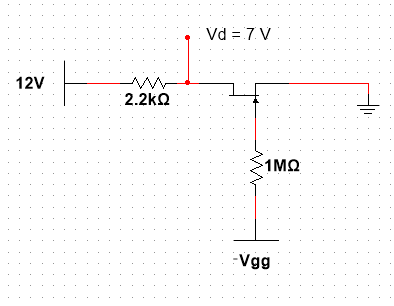

Solved As shown in the circuit below, for a N-channel JFET | Chegg.com
Solved As shown in the circuit below, for a N-channel JFET | Chegg.com
Solved Question 2 For the self biased JFET circuit in Figure | Chegg.com
Solved Question 2 For the self biased JFET circuit in Figure | Chegg.com

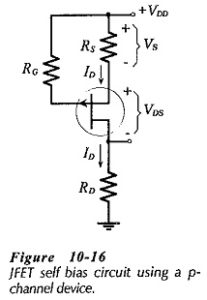

Self Bias Circuit Diagram | Self Bias for P Channel JFET
Self Bias Circuit Diagram | Self Bias for P Channel JFET

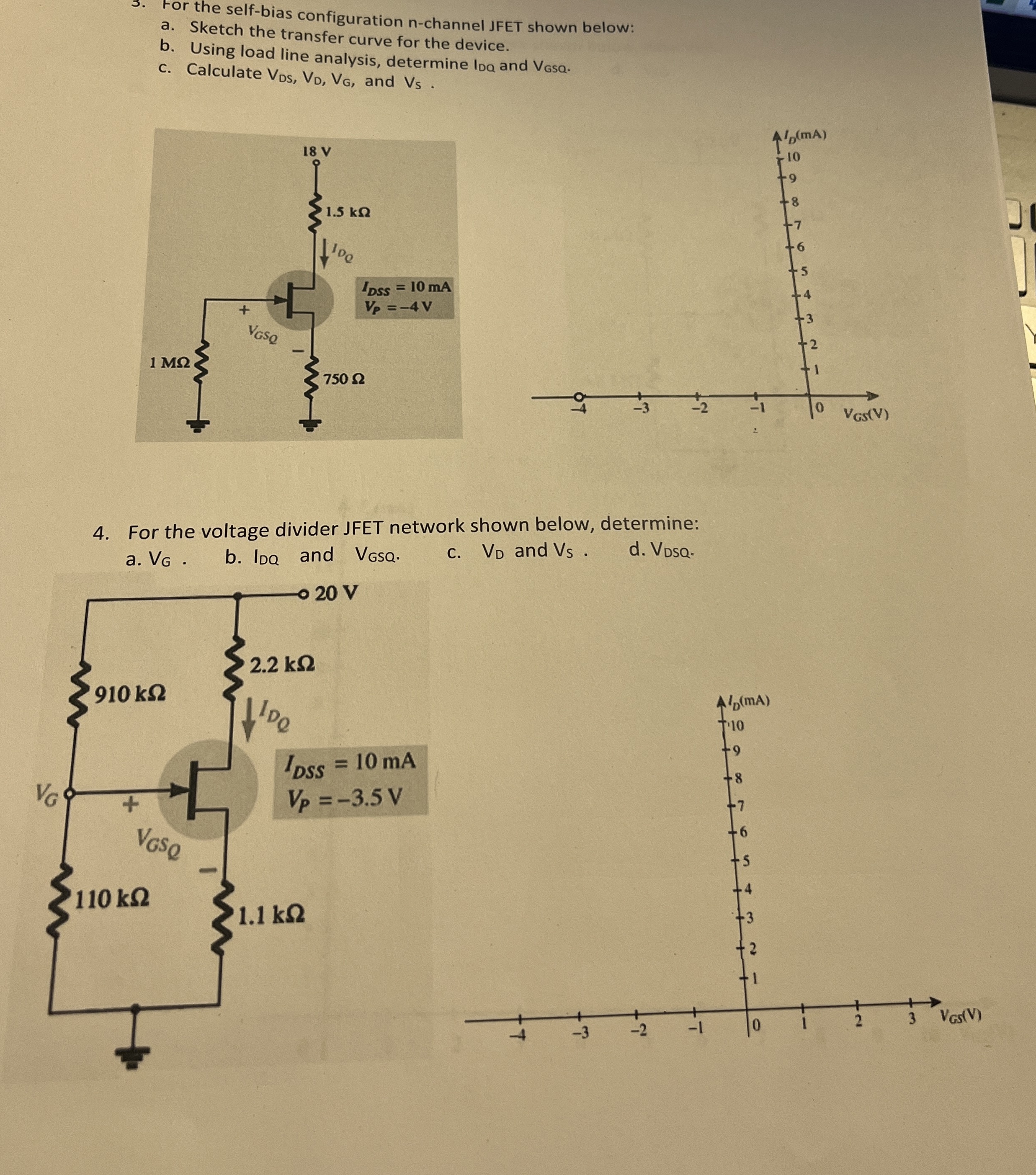

Solved For the self-bias configuration n-channel JFET shown | Chegg.com
Solved For the self-bias configuration n-channel JFET shown | Chegg.com

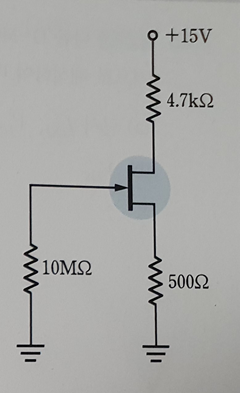

Solved In the self-biased n-channel JFET circuit as shown in | Chegg.com
Solved In the self-biased n-channel JFET circuit as shown in | Chegg.com
Solved 4. The circuit below shows a self-bias scheme for a | Chegg.com
Solved 4. The circuit below shows a self-bias scheme for a | Chegg.com
Solved Design a JFET amplifier using the self bias circuit. | Chegg.com
Solved Design a JFET amplifier using the self bias circuit. | Chegg.com
Solved #2, 50 Points. Given the n-channel JFET circuit shown | Chegg.com
Solved #2, 50 Points. Given the n-channel JFET circuit shown | Chegg.com
Solved 4. The circuit below shows a self-bias scheme for a | Chegg.com
Solved 4. The circuit below shows a self-bias scheme for a | Chegg.com

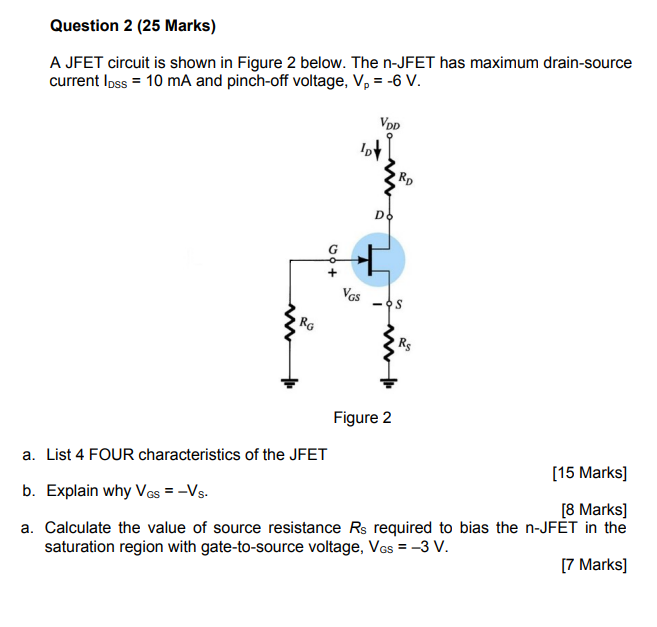

Solved A JFET circuit is shown in Figure 2 below. The n-JFET | Chegg.com
Solved A JFET circuit is shown in Figure 2 below. The n-JFET | Chegg.com

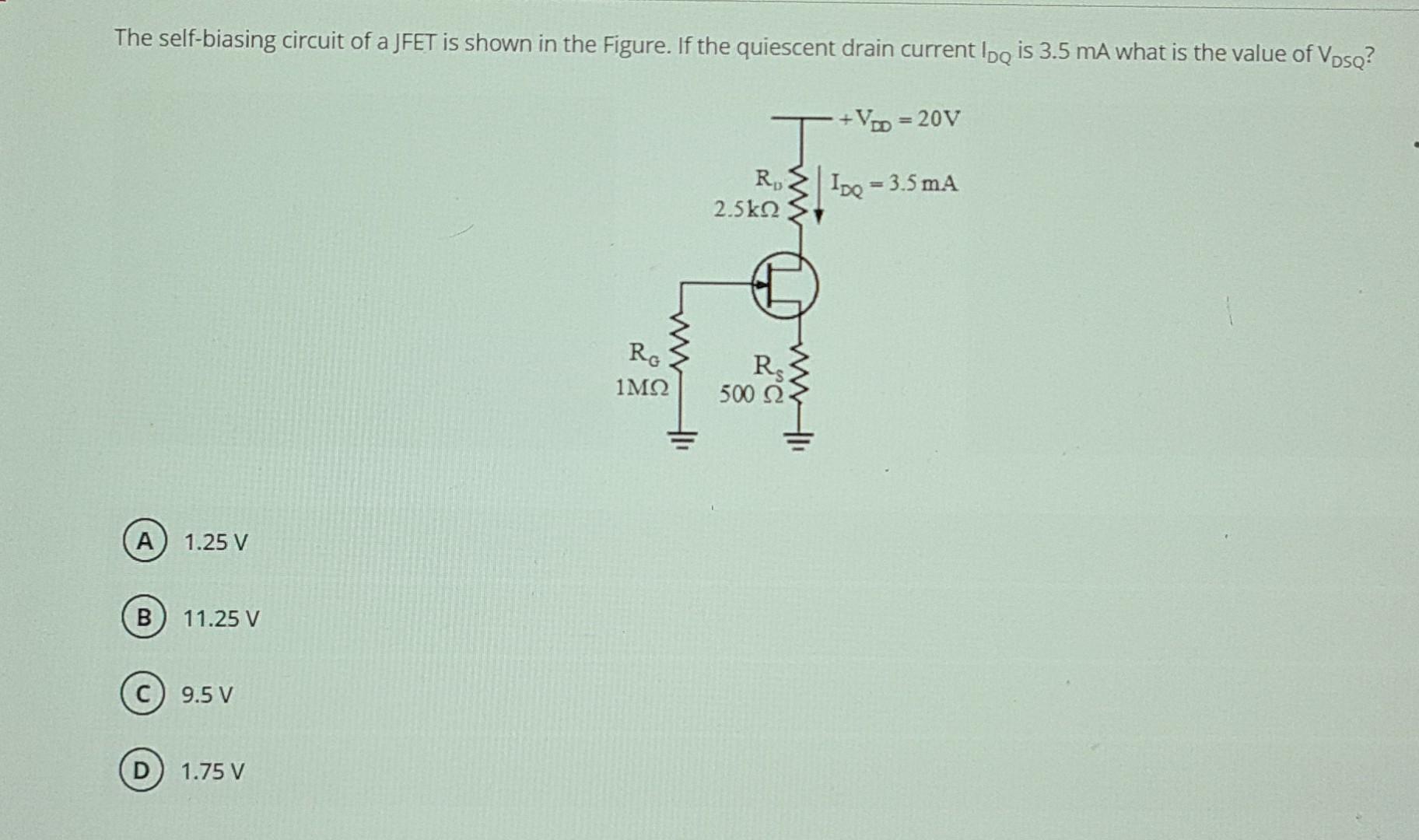

Solved The self-biasing circuit of a JFET is shown in the | Chegg.com
Solved The self-biasing circuit of a JFET is shown in the | Chegg.com

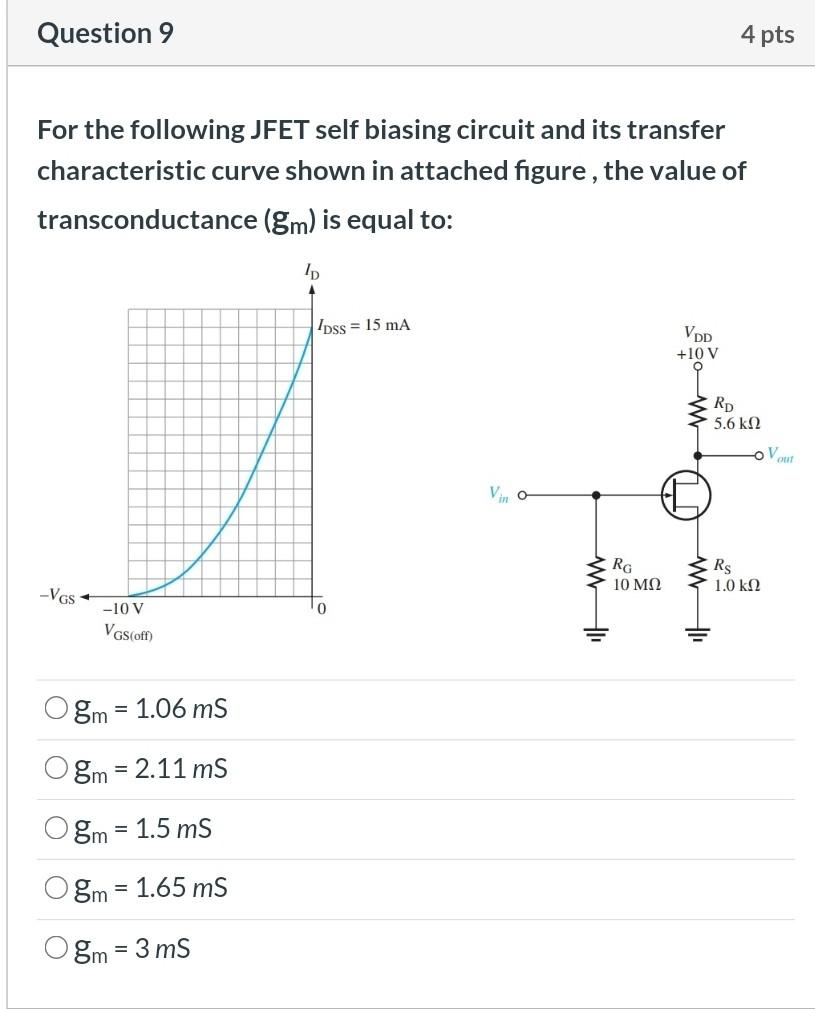

Solved Question 9 4 pts For the following JFET self biasing | Chegg.com
Solved Question 9 4 pts For the following JFET self biasing | Chegg.com
Solved 1. Consider the n-channel JFET amplifier shown below | Chegg.com
Solved 1. Consider the n-channel JFET amplifier shown below | Chegg.com

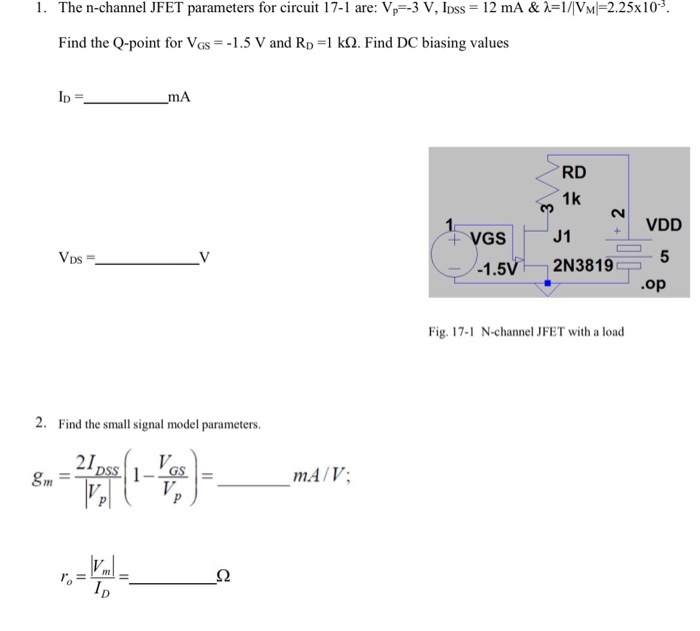

Solved 1. The n-channel JFET parameters for circuit 17-1 | Chegg.com
Solved 1. The n-channel JFET parameters for circuit 17-1 | Chegg.com
Solved A JFET circuit is shown in Figure 2 below. The n-JFET | Chegg.com
Solved A JFET circuit is shown in Figure 2 below. The n-JFET | Chegg.com
Solved In the circuit shown the N-channel JFET amplifier has | Chegg.com
Solved In the circuit shown the N-channel JFET amplifier has | Chegg.com

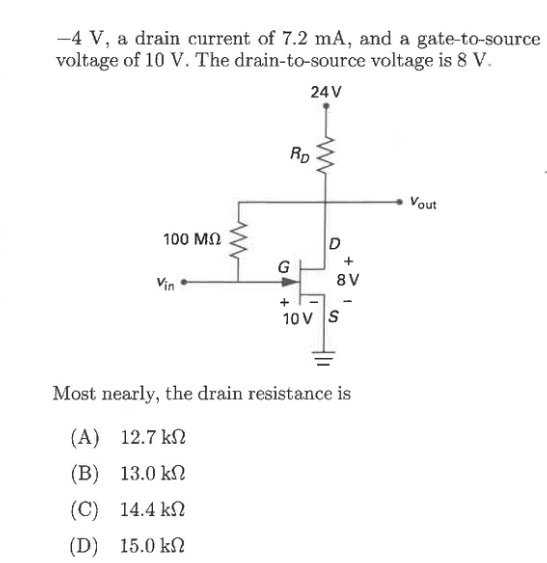

Solved 16. The n-channel JFET in the circuit shown is | Chegg.com
Solved 16. The n-channel JFET in the circuit shown is | Chegg.com
Solved Modify the JFET bias circuit to the figure below. | Chegg.com
Solved Modify the JFET bias circuit to the figure below. | Chegg.com

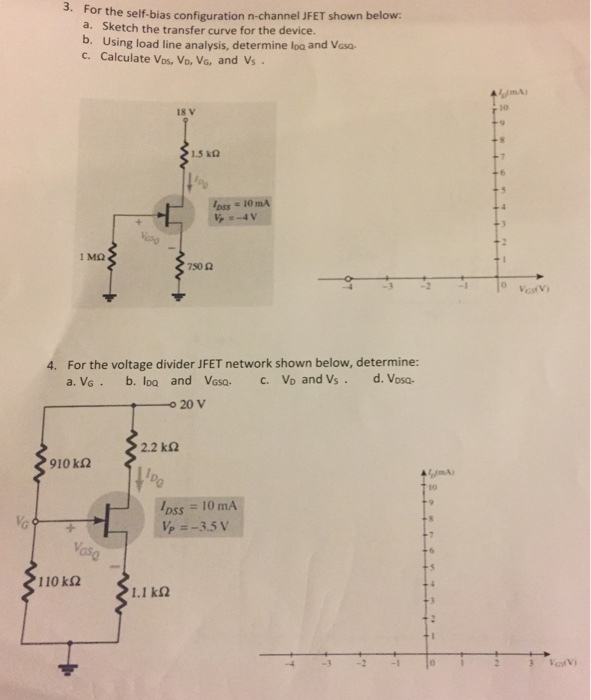

Solved 3. For the self-bias configuration n-channel JFET | Chegg.com
Solved 3. For the self-bias configuration n-channel JFET | Chegg.com
Solved (a) Figure 2 shows the basic circuit for self-bias | Chegg.com
Solved (a) Figure 2 shows the basic circuit for self-bias | Chegg.com
Solved Question 3: For the following self-bias n-type JFET | Chegg.com
Solved Question 3: For the following self-bias n-type JFET | Chegg.com
Solved A self-bias circuit using JFET is shown in Figure Q3 | Chegg.com
Solved A self-bias circuit using JFET is shown in Figure Q3 | Chegg.com
Solved Question 4 (30 pts)For the below self-bias JFET | Chegg.com
Solved Question 4 (30 pts)For the below self-bias JFET | Chegg.com

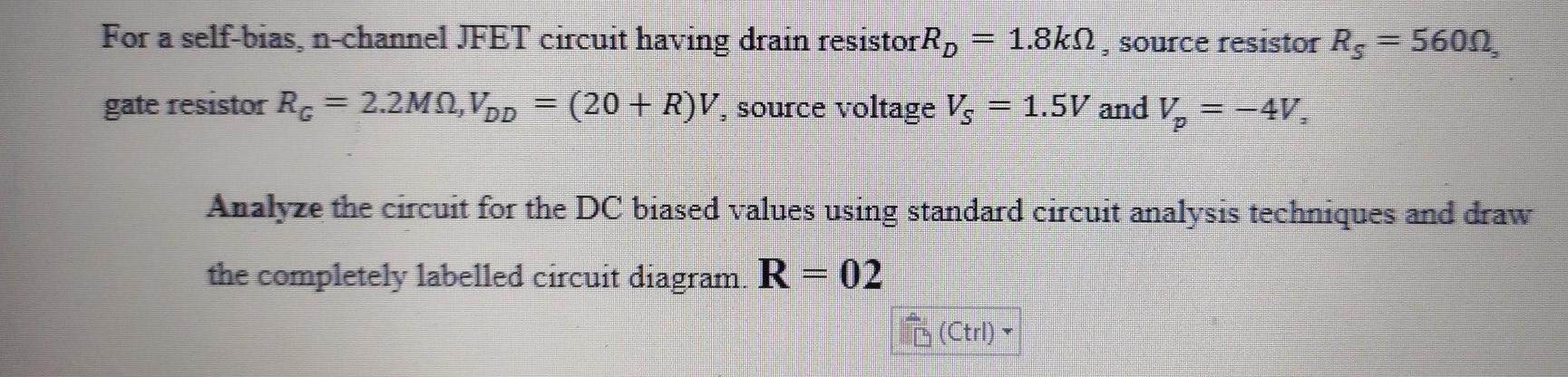

Solved For a self-bias, n-channel JFET circuit having drain | Chegg.com
Solved For a self-bias, n-channel JFET circuit having drain | Chegg.com
Solved In the self-bias circuit for an N-channel depletion | Chegg.com
Solved In the self-bias circuit for an N-channel depletion | Chegg.com
