Solved Given That The Clk And D Waveforms Shown Below Are Cheggcom
Solved Given that the CLK and D waveforms shown below are | Chegg.com
Solved Given that the CLK and D waveforms shown below are | Chegg.com
Solved Given that the CLK and D waveforms shown below are | Chegg.com
Solved Given that the CLK and D waveforms shown below are | Chegg.com
Solved Given that the CLK and D waveform shown below are | Chegg.com
HW6-Examples - 1 Given that the CLK and D waveforms shown below are ...
Solved Given that the CLK, D, and CLRn waveforms shown below | Chegg.com
Solved (5 points) Given that the CLK and D waveforms shown | Chegg.com
Solved Consider the waveforms D and Clk shown below for a | Chegg.com

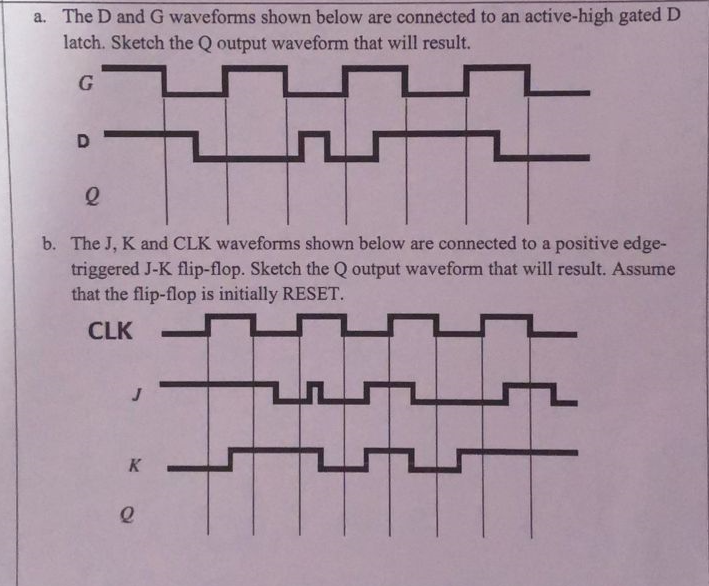

Solved a. The D and G waveforms shown below are connected to | Chegg.com
Advertisement Space (300x250)

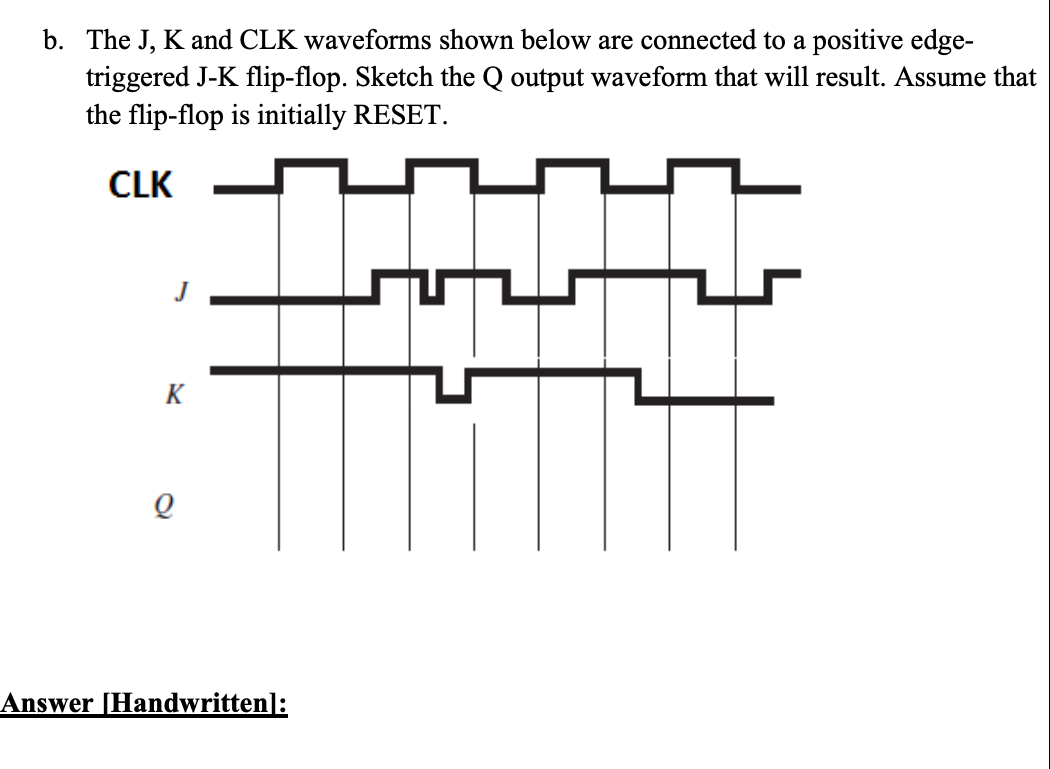

Solved b. The J, K and CLK waveforms shown below are | Chegg.com

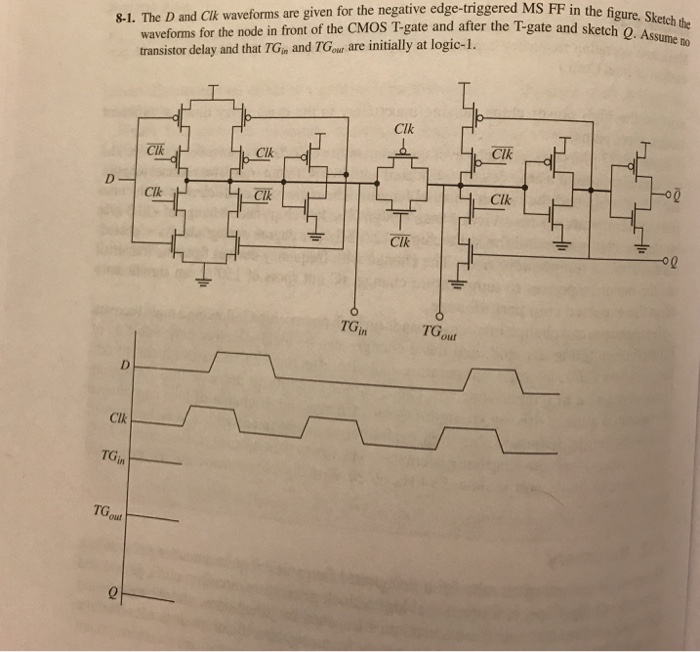

Solved The D and Clk waveforms are given for the negative | Chegg.com
Solved 3) ( 5 points) Given that the CLK and D waveforms | Chegg.com
Solved 5) Given that the CLK, D, and CLRn waveforms shown | Chegg.com
Solved 5) Given that the CLK, D, and CLRn waveforms shown | Chegg.com
Solved 5) Given that the CLK, D, and CLRn waveforms shown | Chegg.com
Solved 1. Given the waveforms shown below for the input D | Chegg.com

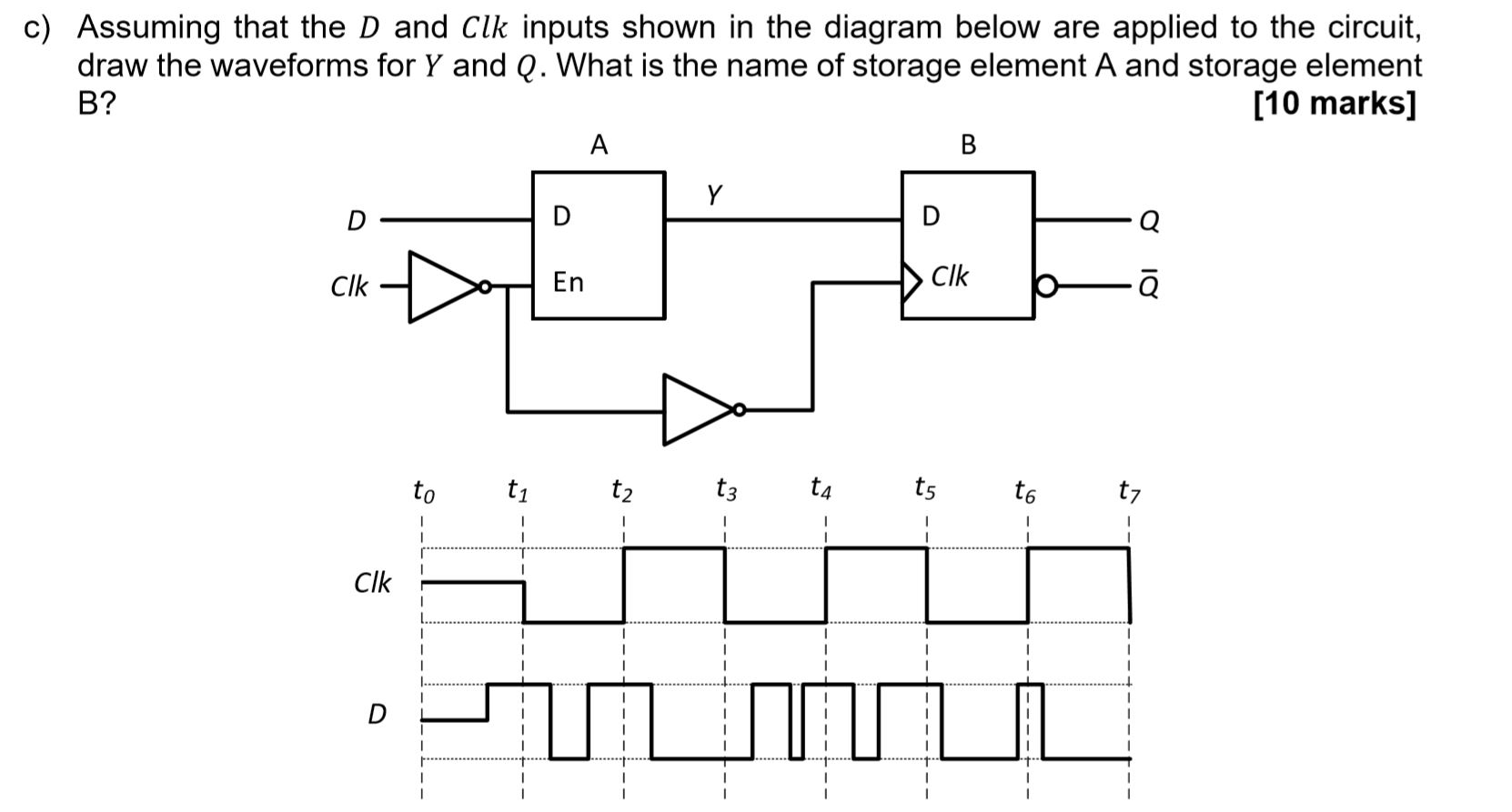

Solved c) Assuming that the D and Clk inputs shown in the | Chegg.com
Solved 5) Given that the CLK, D, and CLRn waveforms shown | Chegg.com
Solved Given that the CLK, D, and CRL_n waveforms shown | Chegg.com
Advertisement Space (336x280)
Solved Given that the CLK, D, and CLR_n waveforms shown | Chegg.com
Solved Given the waveforms for CLK and Dinputs below and | Chegg.com

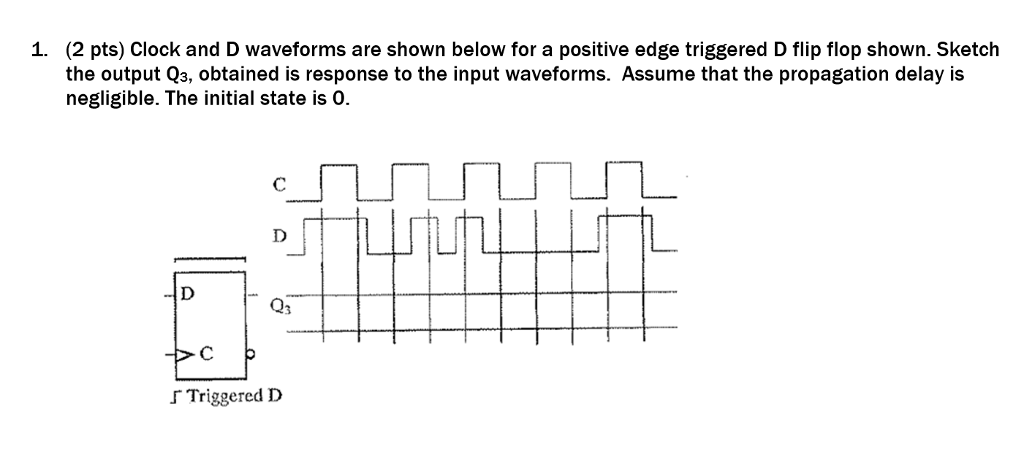

Solved Clock and D waveforms are shown below for a positive | Chegg.com
Solved Clock and D waveforms are shown below for a positive | Chegg.com
a. The D and G waveforms shown below are connected to an active-high ...
Solved The clock and the input waveforms shown below are | Chegg.com

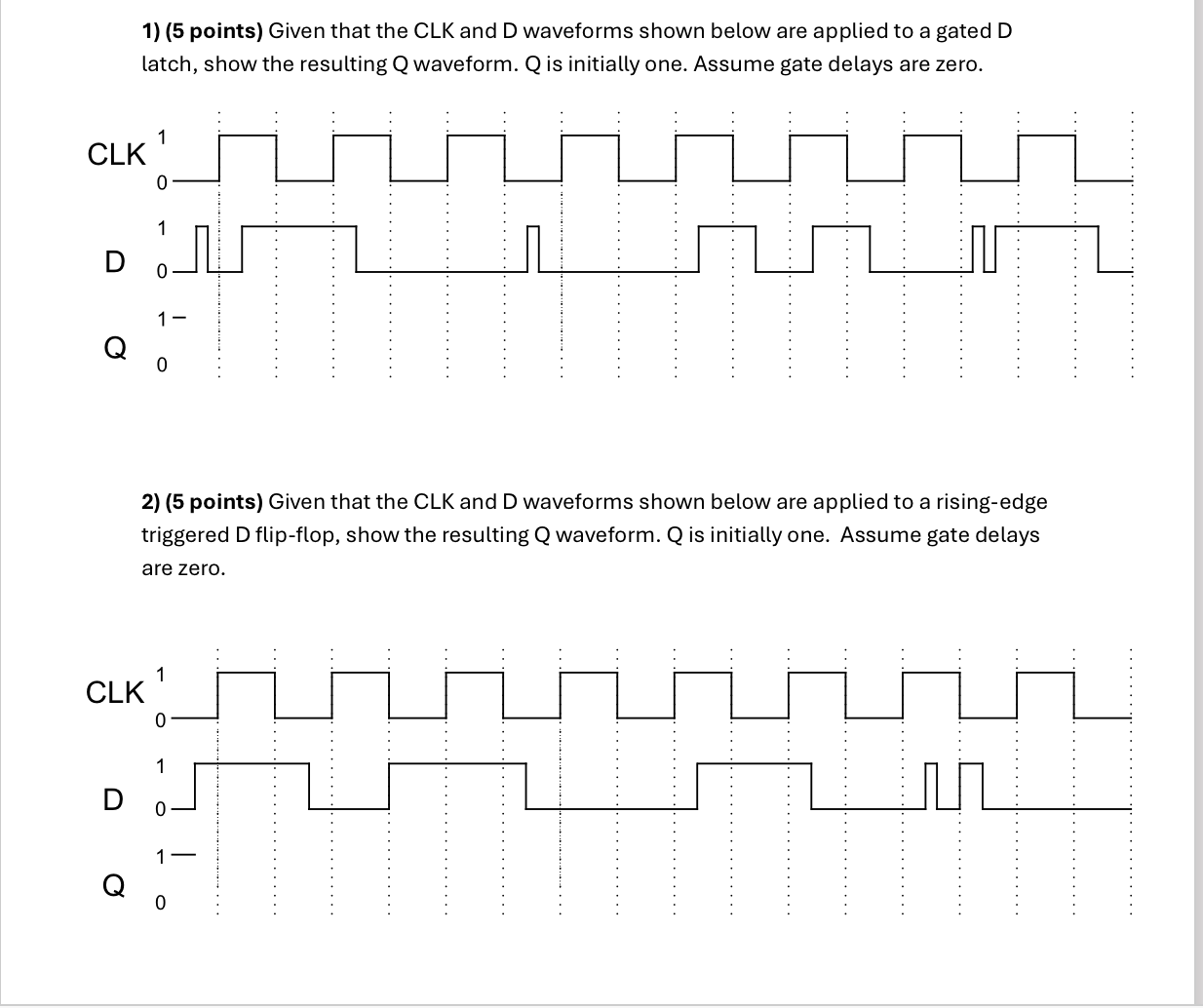

1) (5 points) Given that the CLK and D waveforms | Chegg.com
Solved CLK 3.) Given the same input waveforms shown in | Chegg.com
Solved 1) Apply the D and CLK waveforms to the D and CLK | Chegg.com
Solved Determine the output waveform for the given Clk and D | Chegg.com
Advertisement Space (336x280)
Solved Consider the Clock, S, R and D waveforms shown in the | Chegg.com
Solved CLK 3.) Given the same input waveforms shown in | Chegg.com

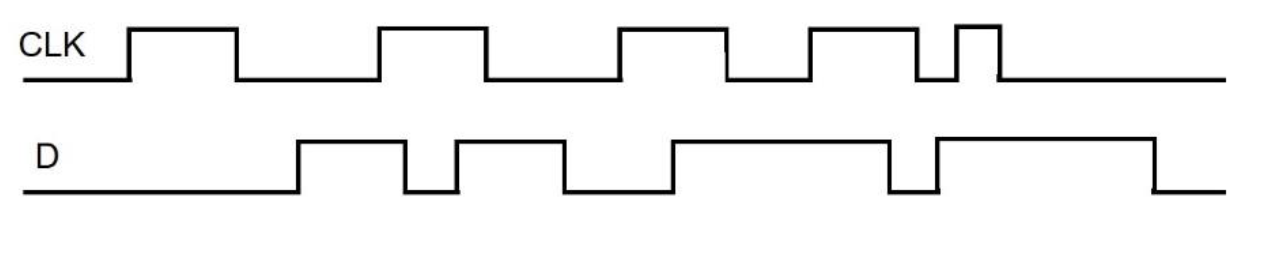

Solved Given the input waveforms shown in the below figure, | Chegg.com
Solved (20\%) If the CLK and D inputs are as follows, draw | Chegg.com
Solved 1) Apply the D and CLK waveforms to the D and CLK | Chegg.com
Solved 2. (10\%) If the CLK and D inputs are as follows, | Chegg.com
