Solved Q 5 For The Bjt Circuit Given On The Right Cheggcom
Solved Q 5. For the BJT circuit given on the right, | Chegg.com
Solved For the given circuit, a) Find Q points of BJT and | Chegg.com
Solved (10pts) For the BJT circuit given below let | Chegg.com
Solved Q 1. (20 pts) For the BJT circuit below, calculate : | Chegg.com
Solved For the given circuit, a) Find Q points of BJT and | Chegg.com
Solved Ql(a) Find the q point for a given BJT transistor of | Chegg.com
Solved For the given circuit, a) Find Q points of BJT and | Chegg.com

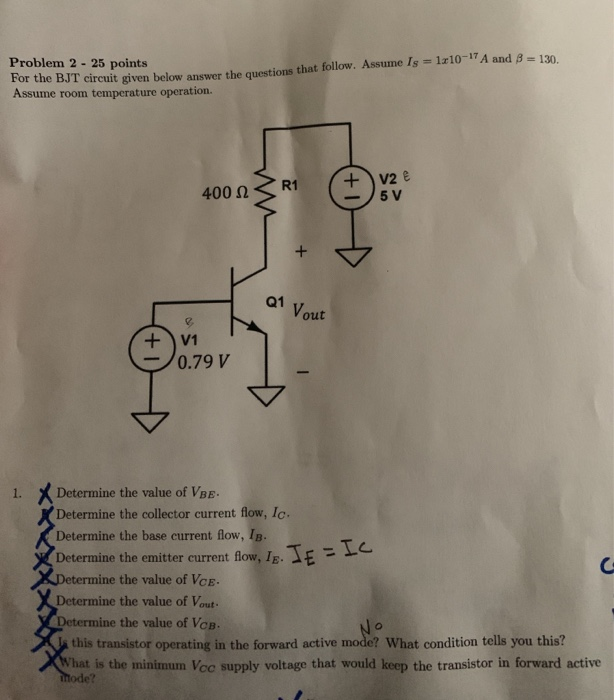

Solved For the BJT circuit given below answer the questions | Chegg.com
Solved For the given BJT circuit | Chegg.com
Solved Problem 5 In the following circuit when BJT is in | Chegg.com
Advertisement Space (300x250)

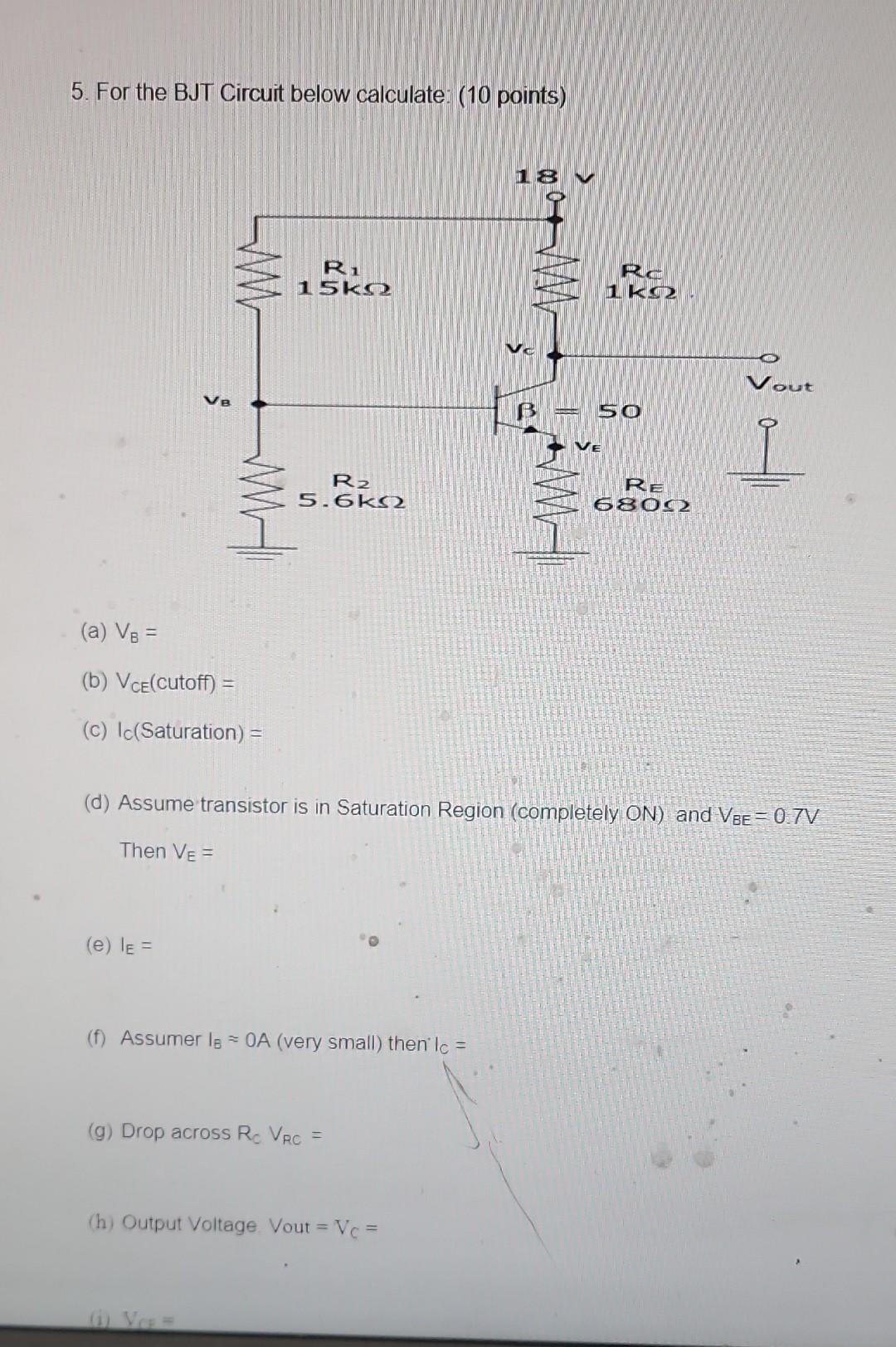

Solved 5. For the BJT Circuit below calculate: (10 points) | Chegg.com

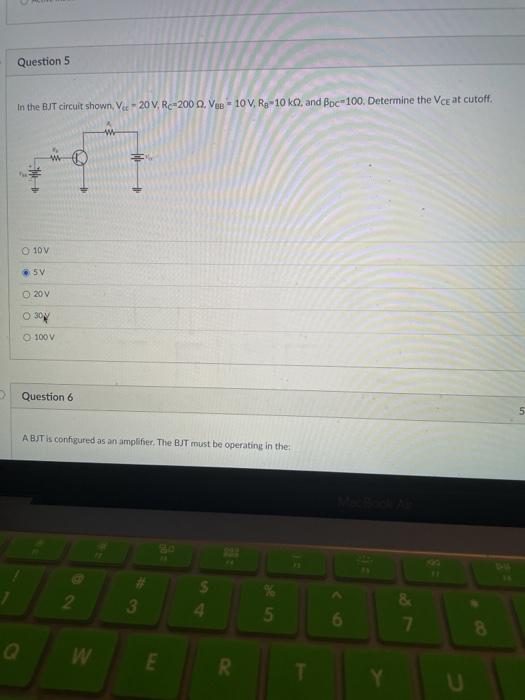

Solved Question 5 In the BJT circuit shown Vec - 20 V, | Chegg.com

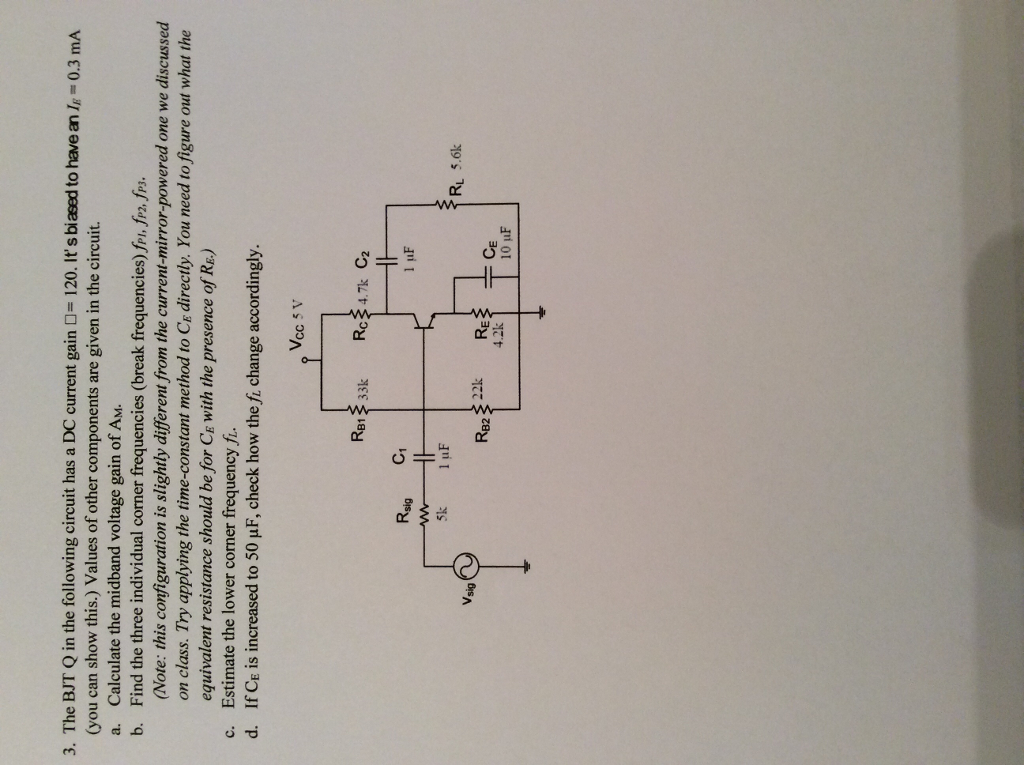

Solved The BJT Q in the following circuit has a DC current | Chegg.com
Solved Problem 1(a). Given the BJT circuit below determine | Chegg.com

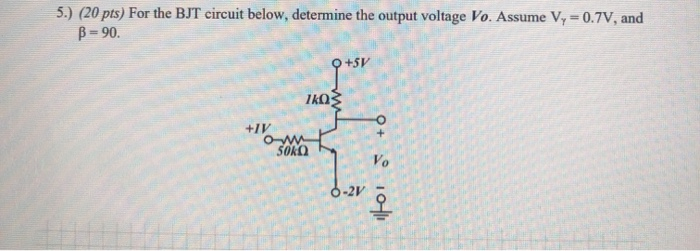

Solved 5.) (20 pts) For the BJT circuit below, determine the | Chegg.com
Solved determine the Q point of a BJT biasing circuit | Chegg.com
Solved 2. For each BJT circuit below, find the BJT Q-Points, | Chegg.com
Solved 2. Consider the BJT circuit given below. Circuit | Chegg.com

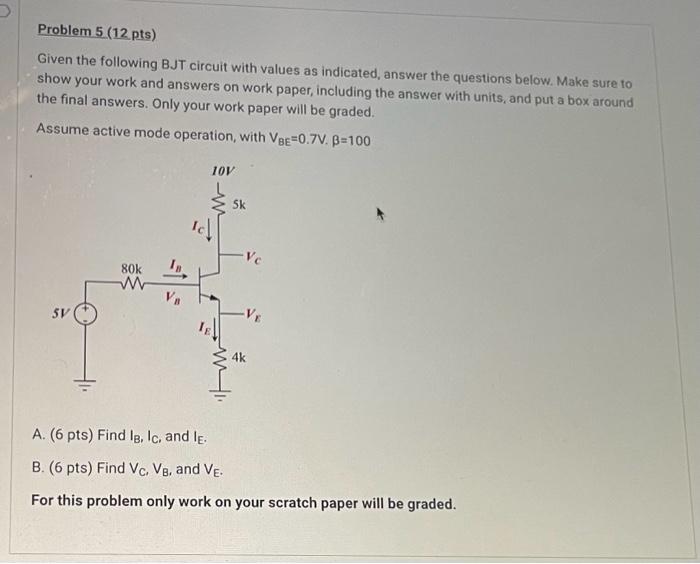

Solved Given the following BJT circuit with values as | Chegg.com
Solved Given the following BJT circuit with values as | Chegg.com
Advertisement Space (336x280)
Solved Given the following BJT circuit with values as | Chegg.com
Solved For the given BJT switching circuit, i. Obtain the | Chegg.com
Solved BJT Circuit Exercise For each of the circuits shown | Chegg.com
Solved 4. For the BJT circuit given, find each of the | Chegg.com

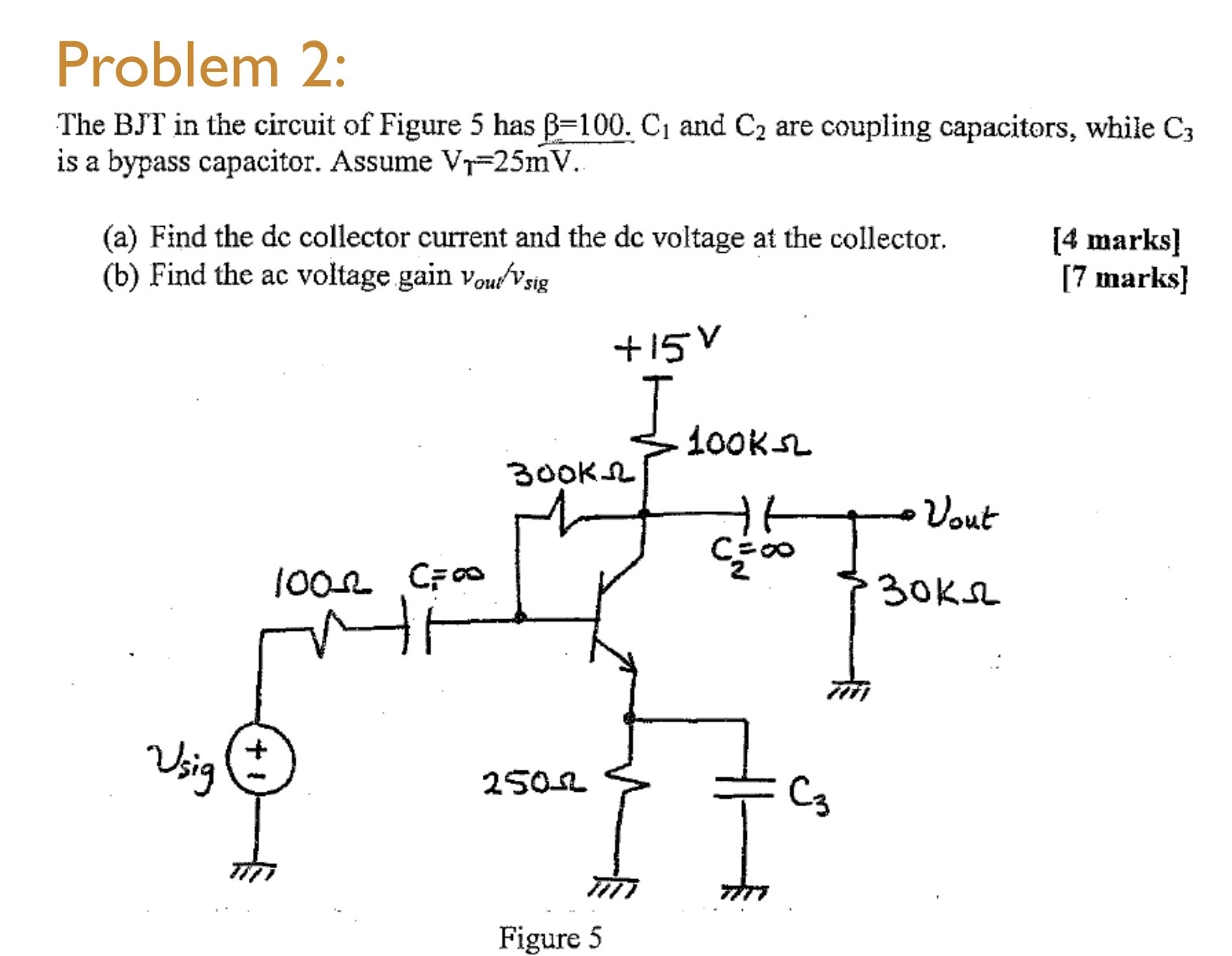

Solved Problem 2:The BJT in the circuit of Figure 5 has | Chegg.com
Solved Q1. For the given BJT circuit, the capacitors are so | Chegg.com

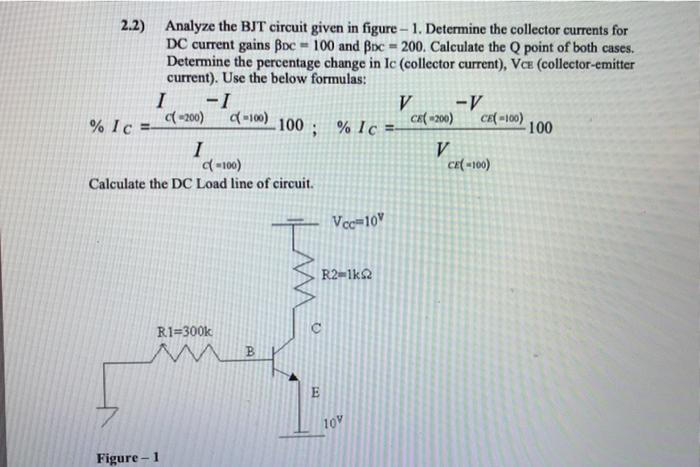

Solved 2.2) Analyze the BJT circuit given in figure - 1. | Chegg.com

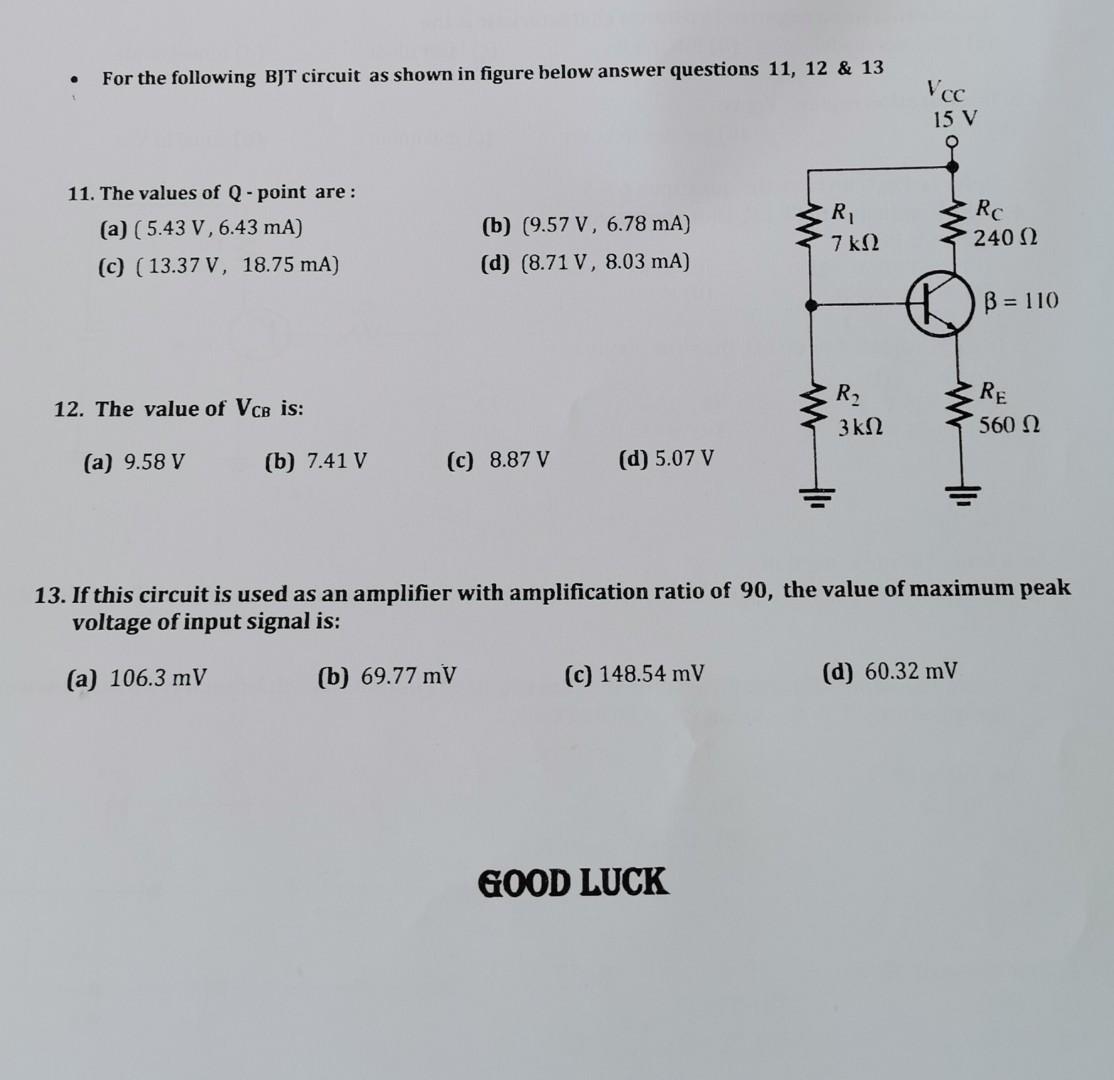

Solved For the following BJT circuit as shown in figure | Chegg.com

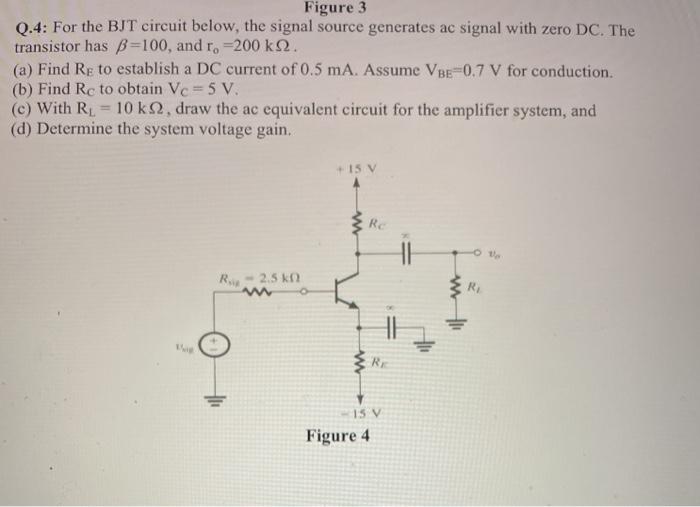

Solved Figure 3 Q.4: For the BJT circuit below, the signal | Chegg.com

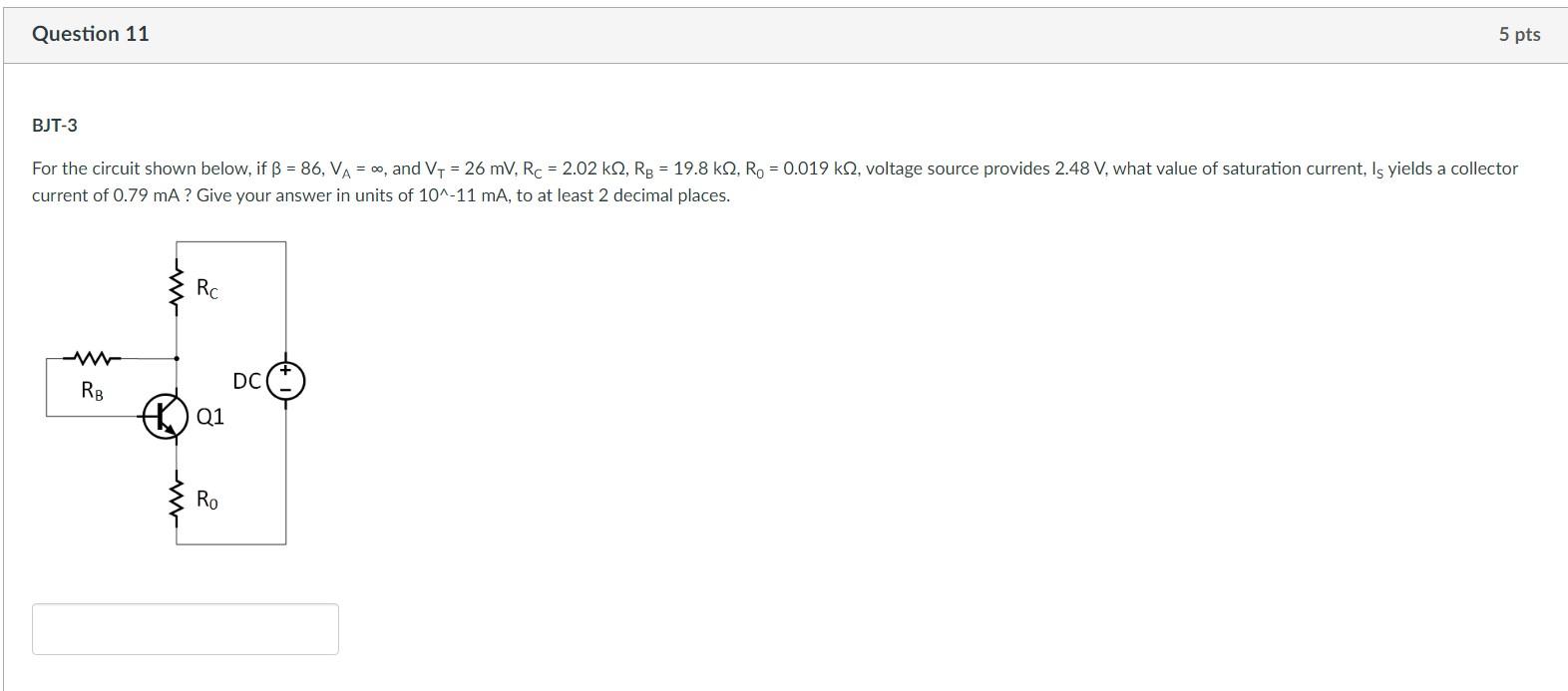

Solved Question 11 5 pts BJT-3 For the circuit shown below, | Chegg.com
Advertisement Space (336x280)
Solved For the BJT circuit shown below, find ic, ib, i E, | Chegg.com

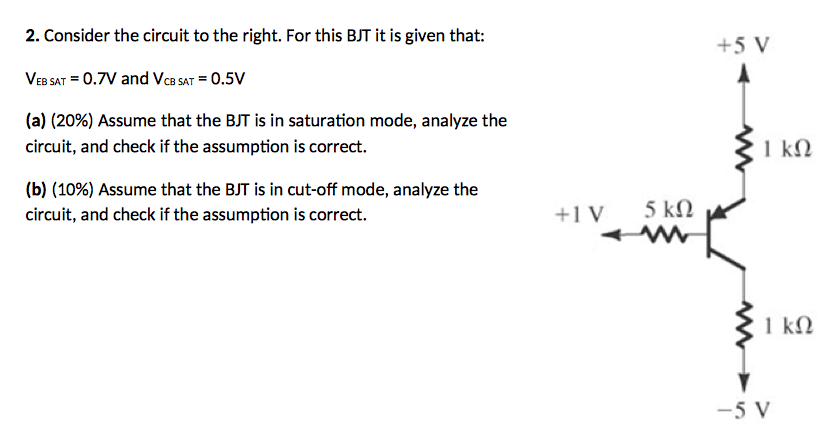

Solved 2. Consider the circuit to the right. For this BJT it | Chegg.com

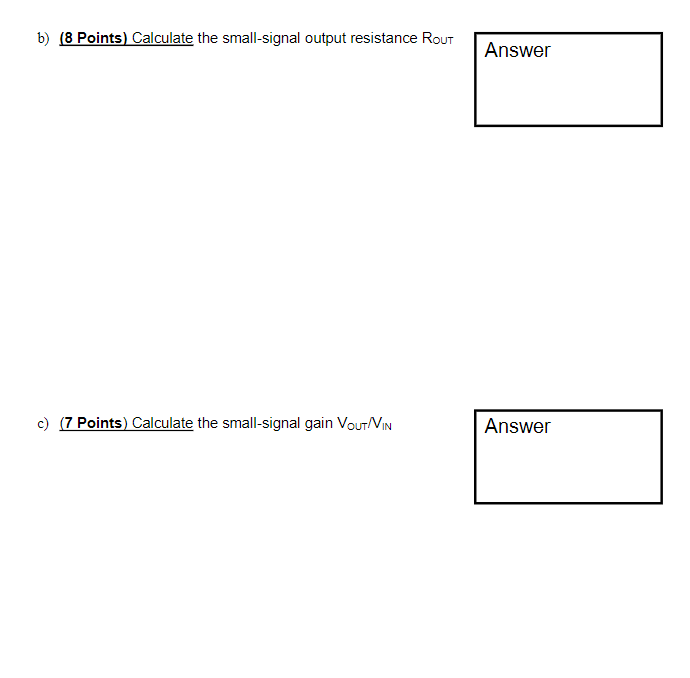

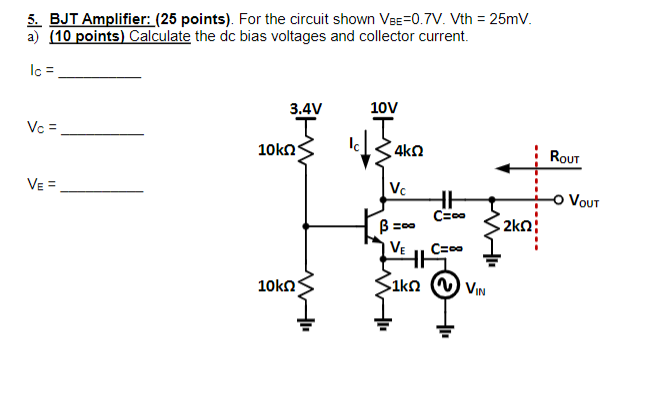

Solved 5. BJT Amplifier: (25 points). For the circuit shown | Chegg.com
Solved 2. Consider the BJT circuit given below. Circuit | Chegg.com

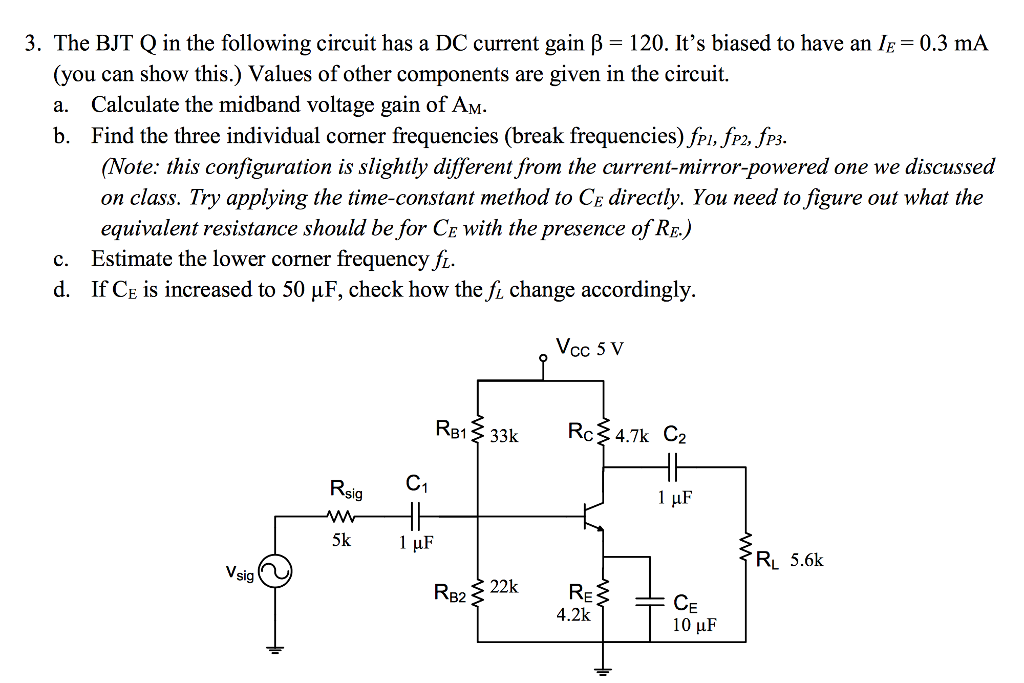

Solved 3. The BJT Q in the following circuit has a DC | Chegg.com
Solved 5. BJT Amplifier: (25 points). For the circuit shown | Chegg.com
