Solved The Layout Of A Cmos Complex Logic Circuit Is Given Cheggcom

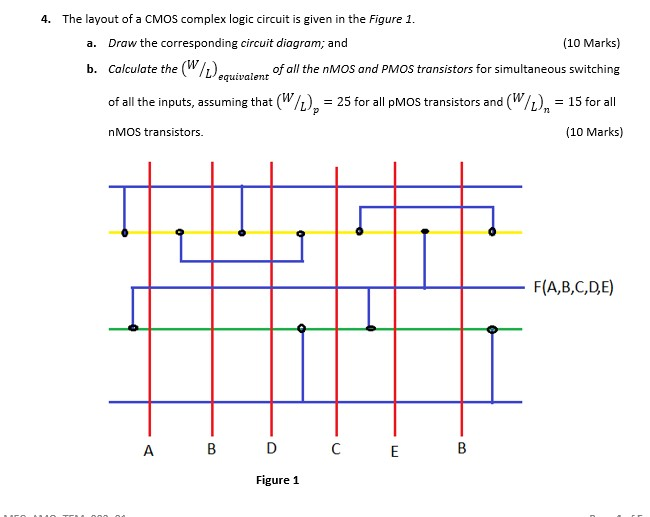

Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved The layout of a CMOS complex logic circuit is given | Chegg.com
Solved 4. The layout of a CMOS complex logic circuit is | Chegg.com
Solved 4. The layout of a CMOS complex logic circuit is | Chegg.com
The layout of a CMOS complex logic circuit is given | Chegg.com
The layout of a CMOS complex logic circuit is given | Chegg.com
Solved 4. The layout of a CMOS complex logic circuit is | Chegg.com
Solved 4. The layout of a CMOS complex logic circuit is | Chegg.com
Solved 4. The layout of a CMOS complex logic circuit is | Chegg.com
Solved 4. The layout of a CMOS complex logic circuit is | Chegg.com
SOLVED: The layout of a CMOS complex logic circuit is given in Figure 1 ...
SOLVED: The layout of a CMOS complex logic circuit is given in Figure 1 ...
The layout of a CMOS complex logic circuit is given in Figure 1. a ...
The layout of a CMOS complex logic circuit is given in Figure 1. a ...
(Solved) - 6. The layout of a CMOS complex logic circuit is given in ...
(Solved) - 6. The layout of a CMOS complex logic circuit is given in ...
Solved The simplified layout of a CMOS complex logic circuit | Chegg.com
Solved The simplified layout of a CMOS complex logic circuit | Chegg.com
Solved Problem 7: The layout of a complex CMOS gate is | Chegg.com
Solved Problem 7: The layout of a complex CMOS gate is | Chegg.com
Solved 1. The basic layout of a CMOS circuit is shown below. | Chegg.com
Solved 1. The basic layout of a CMOS circuit is shown below. | Chegg.com
Problem 3. a) The layout of a CMOS logic circuit is shown in the Fig. 4 ...
Problem 3. a) The layout of a CMOS logic circuit is shown in the Fig. 4 ...
Solved stick diogram layout 4. The layout of a CMOS complex | Chegg.com
Solved stick diogram layout 4. The layout of a CMOS complex | Chegg.com
Solved Problem 6. The circuit in Figure 6 is a complex CMOS | Chegg.com
Solved Problem 6. The circuit in Figure 6 is a complex CMOS | Chegg.com

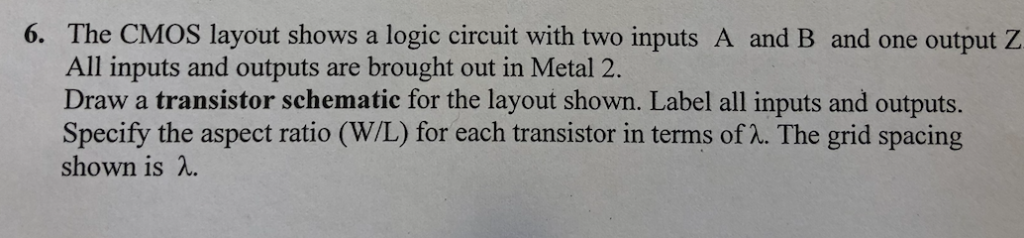

Solved 6. The CMOS layout shows a logic circuit with two | Chegg.com
Solved 6. The CMOS layout shows a logic circuit with two | Chegg.com

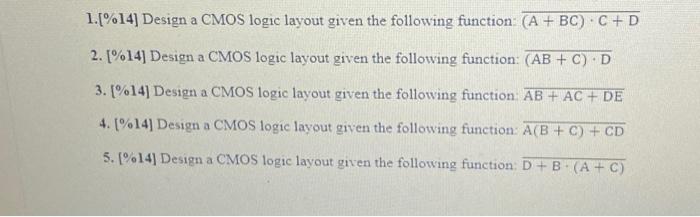

Solved 1.[\%14] Design a CMOS logic layout given the | Chegg.com
Solved 1.[\%14] Design a CMOS logic layout given the | Chegg.com
Solved 4. Given the layout below (which is not a CMOS gate), | Chegg.com
Solved 4. Given the layout below (which is not a CMOS gate), | Chegg.com
Solved 1.[%20] Design a CMOS logic layout given the | Chegg.com
Solved 1.[%20] Design a CMOS logic layout given the | Chegg.com
Solved 3. (25 points) The simplified layout of a CMOS | Chegg.com
Solved 3. (25 points) The simplified layout of a CMOS | Chegg.com
Solved Design a CMOS complex logic gate for the following | Chegg.com
Solved Design a CMOS complex logic gate for the following | Chegg.com
Solved Design a CMOS complex logic gate that performs the | Chegg.com
Solved Design a CMOS complex logic gate that performs the | Chegg.com
Solved Design of CMOS Logic Circuits Given the logic | Chegg.com
Solved Design of CMOS Logic Circuits Given the logic | Chegg.com
Solved Assignment 6.6 You are given a CMOS logic circuit for | Chegg.com
Solved Assignment 6.6 You are given a CMOS logic circuit for | Chegg.com
Solved 5) Design a complex CMOS gate implementation of the | Chegg.com
Solved 5) Design a complex CMOS gate implementation of the | Chegg.com
Solved Fig. 3 as follows is an IC layout of a CMOS | Chegg.com
Solved Fig. 3 as follows is an IC layout of a CMOS | Chegg.com

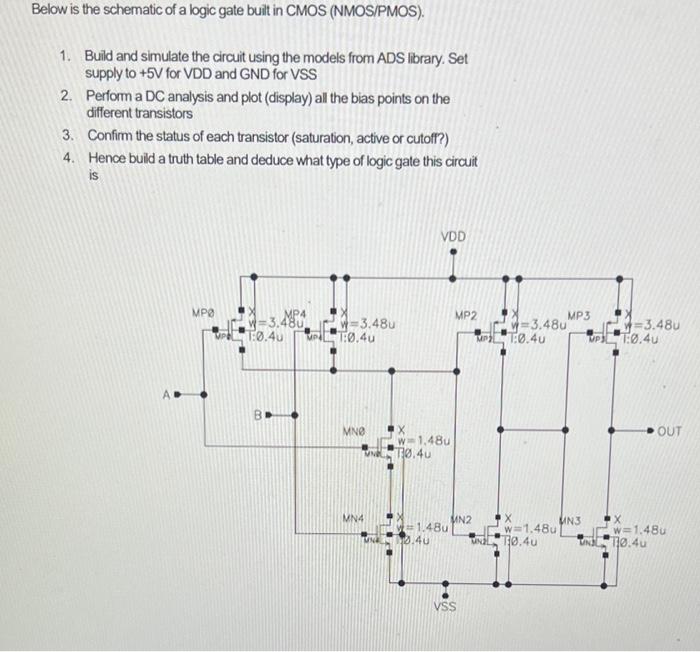

Below is the schematic of a logic gate built in CMOS | Chegg.com
Below is the schematic of a logic gate built in CMOS | Chegg.com
Solved Design a CMOS logic circuit which realizes the logic | Chegg.com
Solved Design a CMOS logic circuit which realizes the logic | Chegg.com

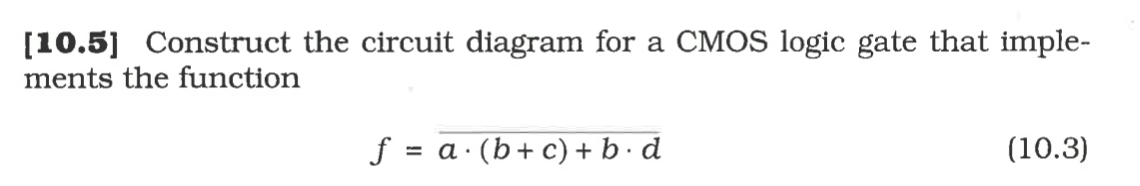

Solved [10.5) Construct the circuit diagram for a CMOS logic | Chegg.com
Solved [10.5) Construct the circuit diagram for a CMOS logic | Chegg.com

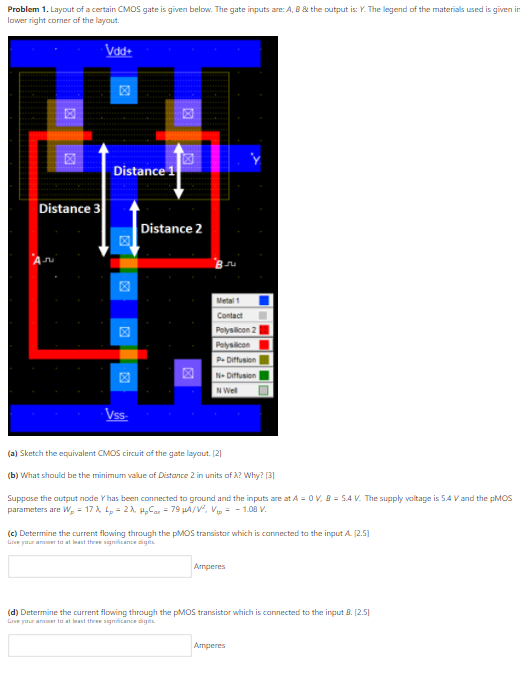

Problem 1. Layout of a certain CMOS gate is given | Chegg.com
Problem 1. Layout of a certain CMOS gate is given | Chegg.com
Solved The CMOS layout below shows a circuit with two inputs | Chegg.com
Solved The CMOS layout below shows a circuit with two inputs | Chegg.com
Solved (d) Design a CMOS circuit for the implementation of | Chegg.com
Solved (d) Design a CMOS circuit for the implementation of | Chegg.com
b) Draw the stick diagram layout for the given CMOS logic gate circuit ...
b) Draw the stick diagram layout for the given CMOS logic gate circuit ...
Solved Design a complex CMOS logic gate that implements the | Chegg.com
Solved Design a complex CMOS logic gate that implements the | Chegg.com
