Solved 4 Figure 1 Illustrates A Simple Alu That Takes Two Cheggcom
Solved 4. Figure 1 illustrates a simple ALU that takes two | Chegg.com
Solved 2. An ALU that takes two 4-bit inputs, A and B, and | Chegg.com
Solved Figure 1 illustrates the architecture of a 4-bit ALU | Chegg.com
Solved In the class we designed a simple ALU supporting 4 | Chegg.com
Figure 1 illustrates the architecture of a 4-bit ALU | Chegg.com

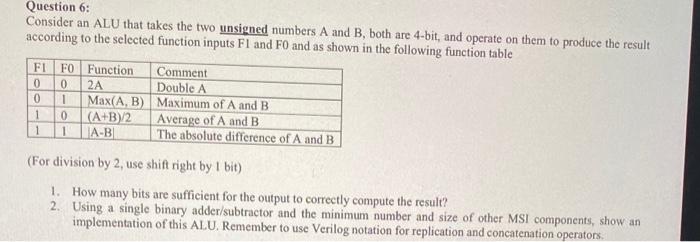

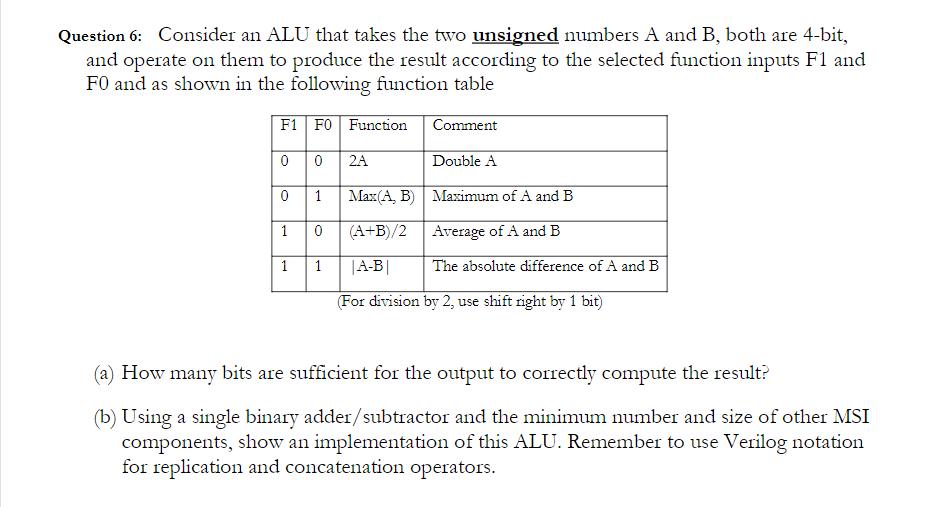

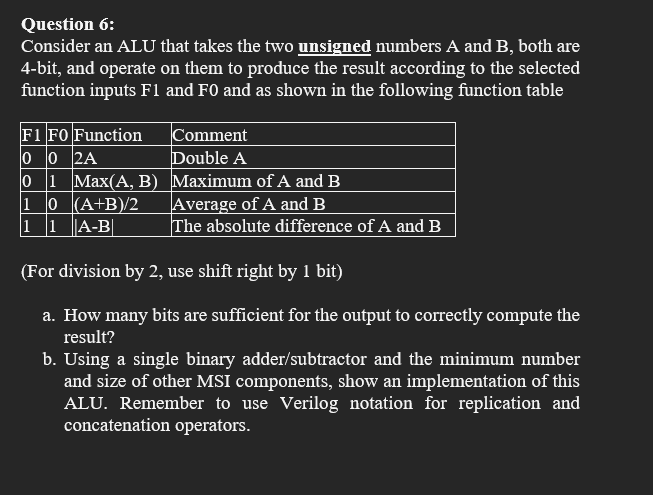

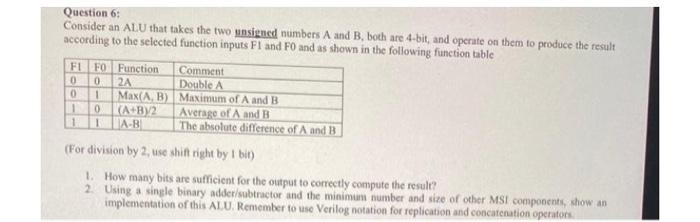

Solved Question 6: Consider an ALU that takes the two | Chegg.com
Solved Question 6: Consider an ALU that takes the two | Chegg.com
Solved Question 6: Consider an ALU that takes the two | Chegg.com
Solved Q6 5 Points Consider an ALU that takes the two | Chegg.com
Solved Question 6: Consider an ALU that takes the two | Chegg.com
Advertisement Space (300x250)
Solved Question 6: Consider an ALU that takes the two | Chegg.com
Solved Figure below is showing a simple single-bit ALU | Chegg.com
Problem 1 25 points an alu has two 4 bit inputs a and ba 1...
Solved Consider the following ALU circuit, which takes two | Chegg.com
Solved Consider an ALU which takes as input two 4-bit | Chegg.com

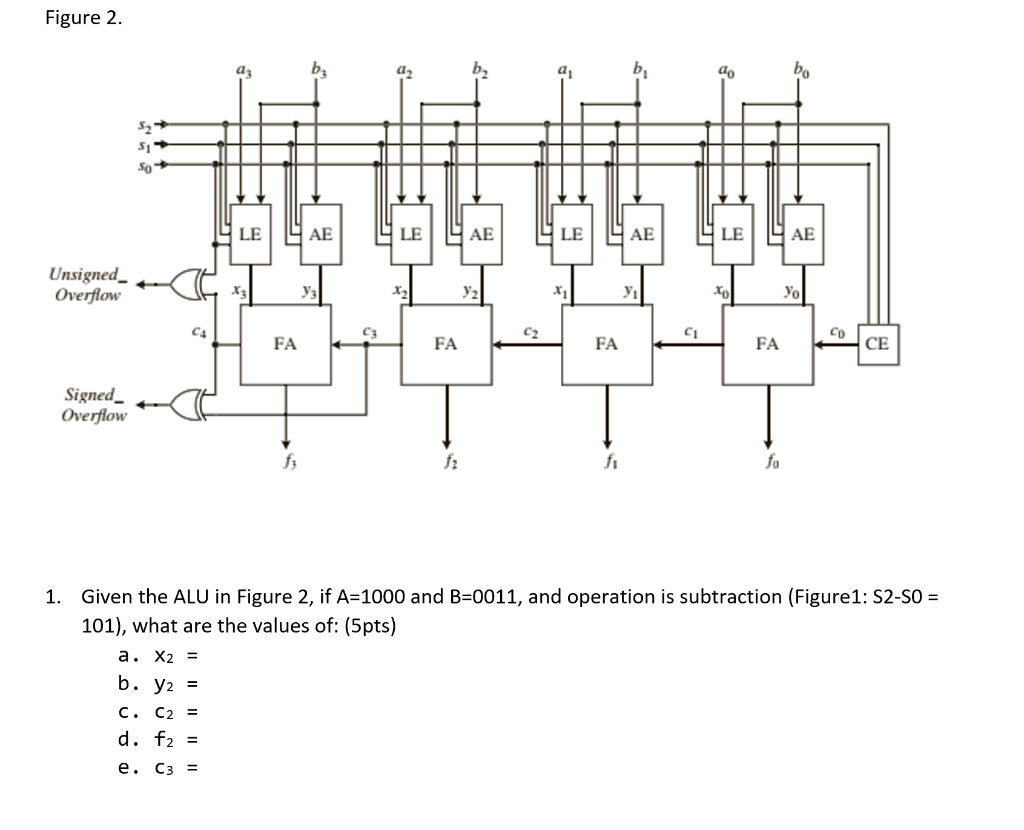

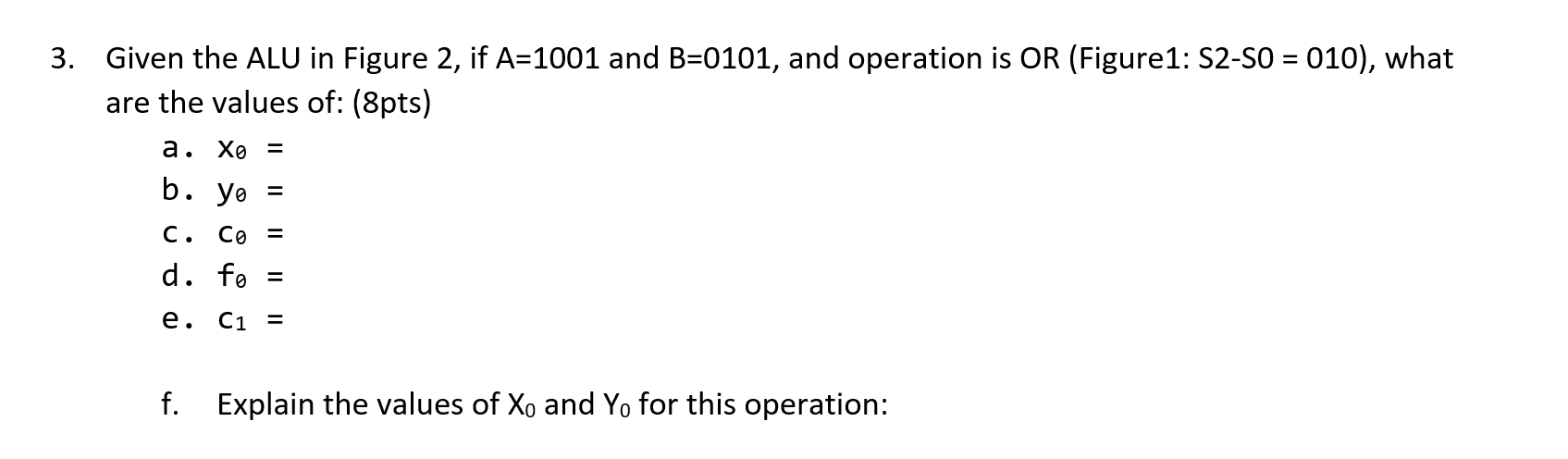

Solved Use the ALU operations table in Figure 1 and the ALU | Chegg.com
Solved Design an ALU (see Figure 1) that can execute one of | Chegg.com
Solved Use the ALU operations table in Figure 1 and the ALU | Chegg.com

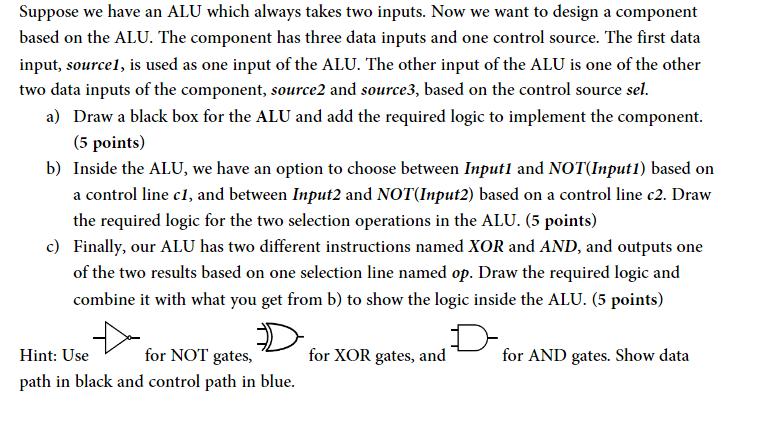

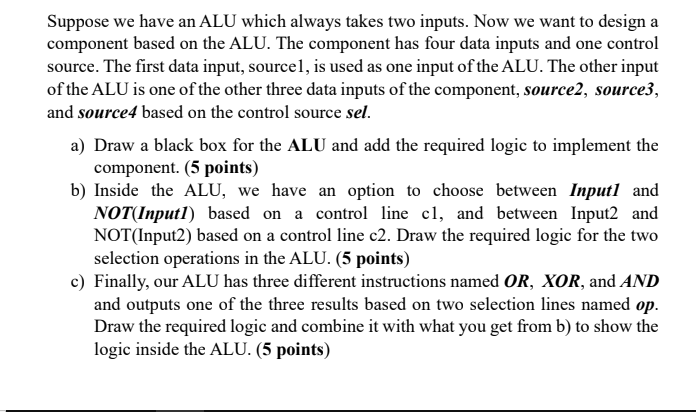

Solved Suppose we have an ALU which always takes two inputs. | Chegg.com
Figure 1 shows a simple block diagram for a type of | Chegg.com
Advertisement Space (336x280)
Solved Suppose we have an ALU which always takes two inputs. | Chegg.com

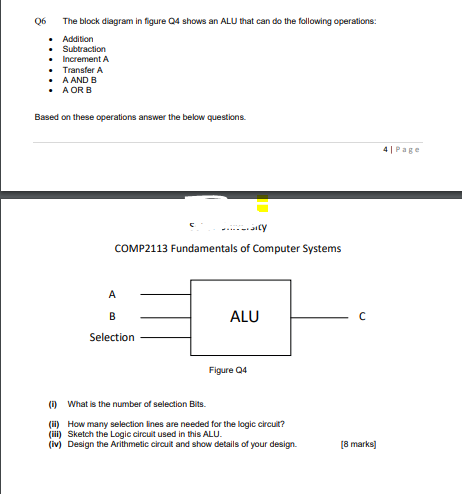

Solved ( 6 The block diagram in figure 04 shows an ALU that | Chegg.com

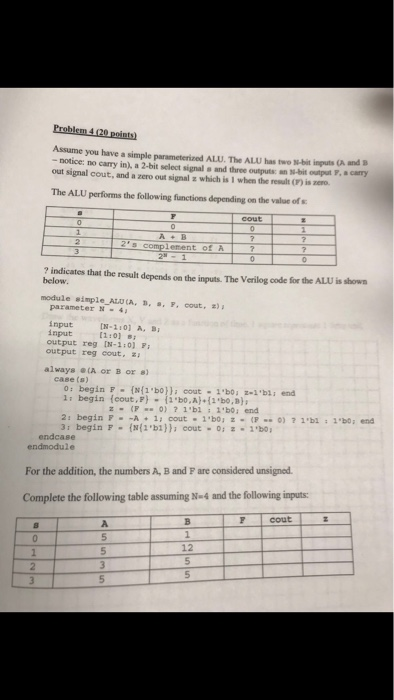

Solved Assume you have a simple parameterized ALU. The ALU | Chegg.com

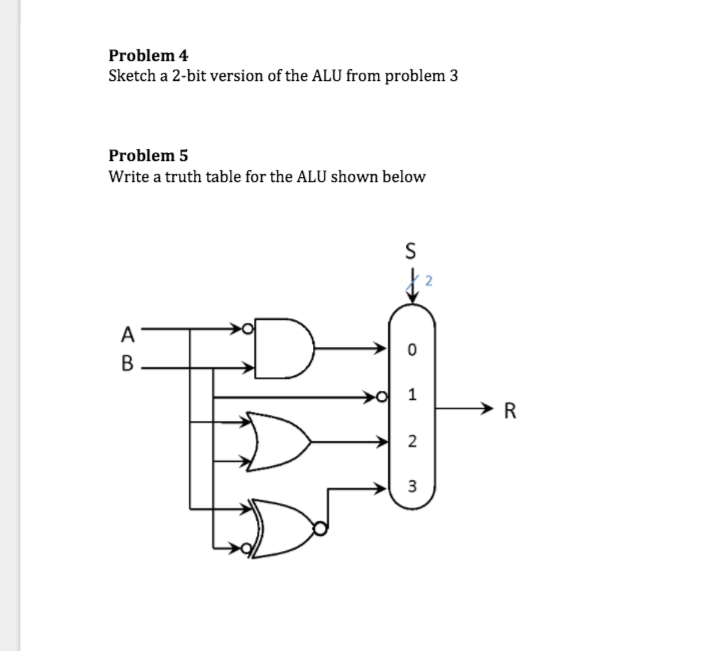

Solved Problem 4 Sketch a 2-bit version of the ALU from | Chegg.com
Solved Use the ALU operations table in Figure 1 and the ALU | Chegg.com
Solved Consider an ALU which takes as input two 4-bit | Chegg.com
Figure 1: Simple ALU Figure 1 above shows the | Chegg.com
Solved Use the ALU operations table in Figure 1 and the ALU | Chegg.com
Solved In this lab, the ALU has two inputs, A and B, each is | Chegg.com
Solved Use the ALU operations table in Figure 1 and the ALU | Chegg.com
Advertisement Space (336x280)
Solved Q5: A B – Draw the figure of ALU Integrated Circuit. | Chegg.com
(4) Implement a one-bit ALU which takes two one-bit operands x0, y0 and ...
Solved Q2. The following is a simple ALU (Arithmetic Logic | Chegg.com
Solved Consider the 4-bit ALU given below. The ALU has two | Chegg.com
Solved Exercise 1: Design a simple 4-bit ALU. Design and | Chegg.com
Solved Q2 (a) (b) A simple Arithmetic and Logic Unit (ALU) | Chegg.com
